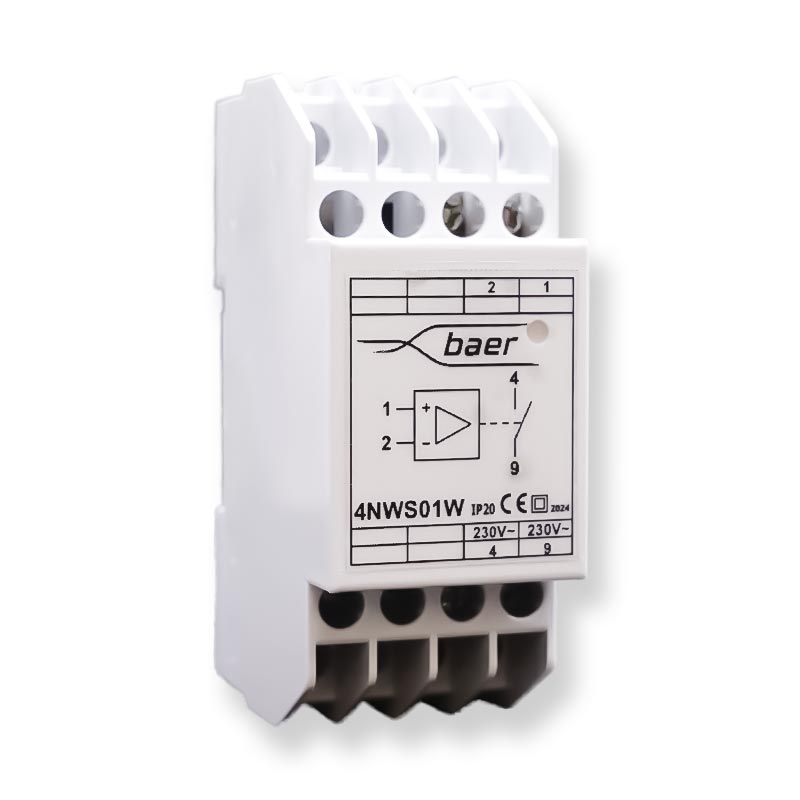

Baeris BA-REL 4NWS01W Electronic pulse isolating relay for galvanic isolation of counting pulses
SKU :
BA-Rel-4NWS01W-10707excl. 19% VAT plus Shipping costs
The BAERIS 4NWS01W relay has been specially developed for remote metering. It has an S0 pulse input (according to DIN 43864) and a galvanically isolated electronic wipe pulse output that supports voltages up to 265VAC/DC and 100mA. With its robust housing for DIN rail mounting, it is ideally suited for reliable signal transmission in industrial applications and energy monitoring. Thanks to its compact design and LED pulse indicator, the relay is an efficient solution for control and measurement systems in distribution cabinets where space is limited.
| Equipment | |
|---|---|
| Material | Plastic |
| Power supply | |
| Power supply details | 230 V |
| Certifications | |
| Certifications | IP20 |
| Weights / dimensions | |
| Dimensions | 36 x 90 x 60mm |
