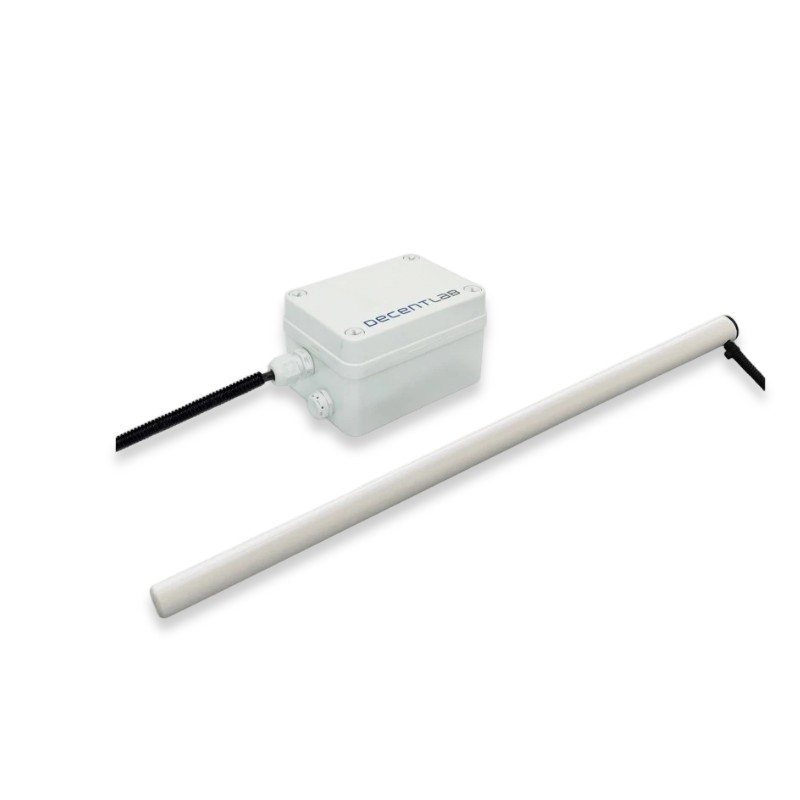

The Decentlab DL-SDD-01 is a rugged, LoRaWAN-enabled soil profile sensor designed for continuous outdoor measurement of soil moisture, soil temperature, and salinity. A probe installed in the soil measures values at six standard depth levels (50–550 mm) and transmits the data in an energy-efficient and encrypted manner via LoRaWAN Class A to public or private networks.Thanks to capacitive measurement technology, a weatherproof IP67 housing, standard C-size alkaline batteries, and very low power consumption, maintenance-free operation is possible for several years. The sensor is ready for immediate use (“place and measure”), but can be configured via downlink or command line if necessary. The DL-SDD is ideal for smart agriculture, irrigation control, field and environmental monitoring, greenhouses, parks, and golf courses, where reliable soil data is needed over long distances.
| Equipment | |
|---|---|
| sensors | soil humidity, soil conductivity, ground temperature |
| antenna | internal |
| Communication | |
| activation | OTAA, ABP |
| frequency | EU868 |
| interfaces | Downlink, UART |
| connectivity | LoRaWAN |
| Power supply | |
| power supply | battery, included, replaceable |
| number of batteries | 2 |
| battery details | LR 14, Alkaline, nicht aufladbar |
| Certifications | |
| enclosure protection class | IP67 |
| Others | |
| Brand | Decentlab |
