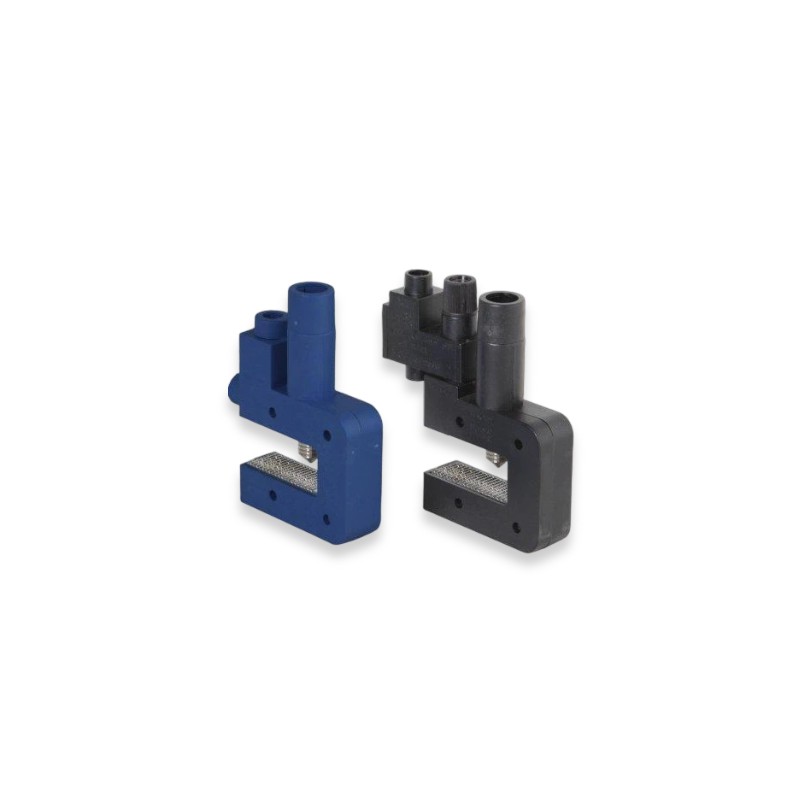

The EMU UAK voltage tap set is a compact and safe solution for reliable voltage tapping in electrical distribution systems. It is primarily connected via an M8 hex socket screw, enabling a secure connection to busbars with a maximum thickness of 15 mm / 4 mm. The system is designed for a maximum operating voltage of 690 V and supports a rated current of up to 10 A. Thanks to an integrated fuse (5x25 mm with indicator, 10 A) and high short-circuit withstand capacity of up to 70 kA, the set offers a high level of operational safety. The IP20 protection rating and insulation class E (up to 120 °C) ensure robust performance in industrial applications.
| Certifications | |
|---|---|
| enclosure protection class | IP20 |
| Others | |
| Brand | EMU |
