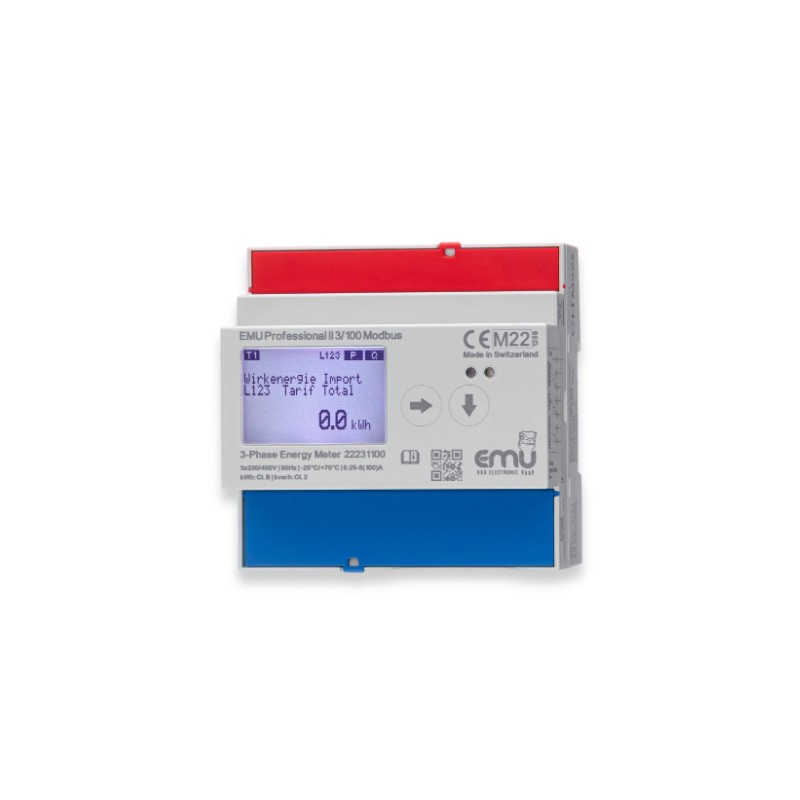

EMU P020000MO EMU Professional II 3/100 Modbus Electricity Meter
SKU |
EMU-P020000MO |
incl. 19.0% VAT plus Shipping costs
The EMU P020000MO EMU Professional II 3/100 Modbus electricity meter is a three-phase energy meter designed for the direct measurement of electrical energy. Once installed and wired, the device offers the following core functions:
- Continuously measures active and reactive power, as well as current, voltage, power, and frequency values.
- Stores 15-minute load profiles for long-term consumption analysis and billing audits.
- Transmits data via the built-in Modbus RTU RS485 interface for system integration and monitoring in building automation systems.
The meter operates on 230/400 V AC networks at 50/60 Hz and measures up to 100 A. It complies with EN 50470-3 Class B, EN 62053, and MID B+D, with PTB-A 20.1 certification. The integrated load profile memory stores data for more than three years. The compact DIN rail housing is suitable for sub-metering, billing, and energy management installations and supports compliant data exchange as well as traceable consumption data.
| Equipment | |
|---|---|
| sensors | power consumption, electricity |
| antenna | internal |
| Communication | |
| activation | OTAA, ABP |
| connectivity | Modbus, RS485 |
| Power supply | |
| power supply | mains voltage |
| Certifications | |
| enclosure protection class | IP51 |
| Others | |
| Brand | EMU |
The device is a 3-phase energy meter designed for direct connection up to 100A. It has a starting current of 20mA and operates at a voltage of 230VAC (L-N) or 400VAC (L-L) with a +/- 20% tolerance.
The meter is designed for 35 mm DIN-rail mounting. It has a physical width of 90 mm, which is equivalent to 5 modules (5TE).
This model is equipped with a Modbus RTU RS485 interface. It supports baud rates ranging from 9,600 to 115,200 Baud and requires a 1.5 mm2 connection cross-section for the bus line.
It is suitable for a variety of applications including cost center accounting, sub-metering, power monitoring, and energy management systems in accordance with ISO 50001.
The device meets accuracy Class B (1%) for active energy according to EN50470-3 and Class 2 (2%) for reactive energy according to EN62053.
Yes, the meter features MID B + D approval, making it suitable for energy billing and official metering tasks.
The meter includes a 38x28 mm graphical LC-display with backlighting, allowing for clear local monitoring of energy data.
Yes, it is equipped with an S0 pulse output interface via an Opto Power MOSFET, supporting a voltage range of 5–60V AC/V DC.
