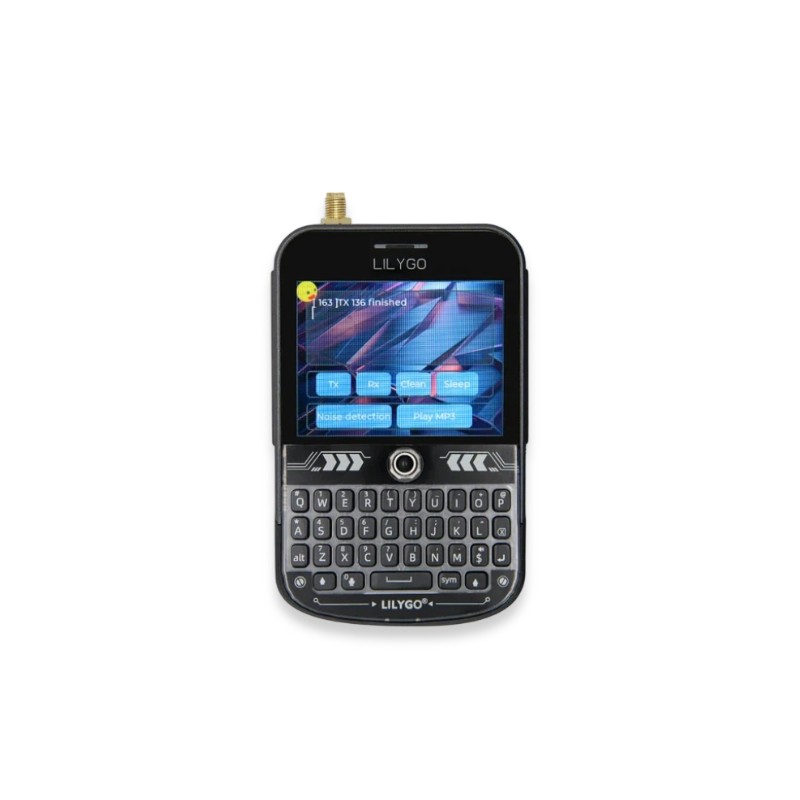

LILYGO T-Deck Plus Meshtastic Communicator

Price:

99.84 €
LILYGO T-Deck Plus Meshtastic Communicator
  2. Shop
  3. LILYGO T-Deck Plus Meshtastic Communicator
New

LILYGO T-Deck Plus Meshtastic Communicator

https://iot-shop.de/web/image/product.template/12136/image_1920?unique=c6b13b9

99.84 € 99.84 EUR 99.84 €

Not Available For Sale

  • Brand
  • connectivity
  • antenna
  • frequency
  • power supply
  • battery details
  • connectivity
  • connectivity

This combination does not exist.

Contact Us
SKU
 LL-H736-03-MESH

incl. 19.0% VAT plus Shipping costs

The LILYGO T-Deck Plus Meshtastic is a ready-to-use Meshtastic communicator featuring an ESP32-S3 dual-core processor, 16 MB of flash memory, and 8 MB of PSRAM. The integrated SX1262 LoRa transceiver transmits at up to +22 dBm on 868 MHz, with the option of using an internal or external antenna for greater range. The 2.8-inch IPS touchscreen (320 x 240) displays maps, messages, and nodes directly on the device, while the GPS module and 2000-mAh battery enable hours of mobile use without a smartphone. A microphone, speaker, TF card slot, Wi-Fi, and Bluetooth 5 LE round out the features. Pre-loaded with Meshtastic firmware, but open for custom development via Arduino, PlatformIO, or MicroPython.
Equipment
antenna external
Communication
connectivity Meshtastic, GNSS, Bluetooth
frequency EU868
Power supply
power supply battery, included, not replaceable
battery details Li-Ion
Others
Brand Lilygo
DataSheet_LILYGO-Tdeck_EN.pdf
Download
What are the primary improvements in the Plus version compared to the standard model?

The Plus version features significant upgrades including an integrated GPS module and a built-in 2000 mAh battery for enhanced portability.
What features and connectivity options does this device support?

The device features a LoRa transceiver, GPS, a TF card slot, a microphone, and a speaker. It supports LoRa communication and Meshtastic networking, with development support provided through sample code available on GitHub.
What kind of processing power and memory capacity does the communicator provide?

It is powered by an ESP32-S3FN16R8 Dual-core LX7 microprocessor and includes 16MB of Flash memory along with 8MB of PSRAM.
Which software development platforms are compatible with this hardware?

Developers can program the device using Arduino, PlatformIO-IDE, and Micropython.
What are the specifications of the built-in display?

The device features a 2.8-inch ST7789 SPI interface IPS LCD with a resolution of 320 x 240 and a full viewing angle.
Does the device include any integrated audio or external storage capabilities?

Yes, it is equipped with an onboard microphone, a speaker, and a TF card slot for storage expansion.
How is the user interface navigated on the device?

Navigation is facilitated by an onboard trackball that supports directional movements (Up, Down, Left, Right) and a Boot function.
What options are available for mounting the device?

The device includes a 1/4-inch nut for mounting.
