| Equipment | |
|---|---|
| antenna | internal |
| sensors | people counter |
| Communication | |
| connectivity | Infrarot |
| Power supply | |
| power supply | battery, included, replaceable |
| battery details | Alkaline, nicht aufladbar, AA |
| Certifications | |
| enclosure protection class | IP68 |
| Others | |
| Brand | SensMax |

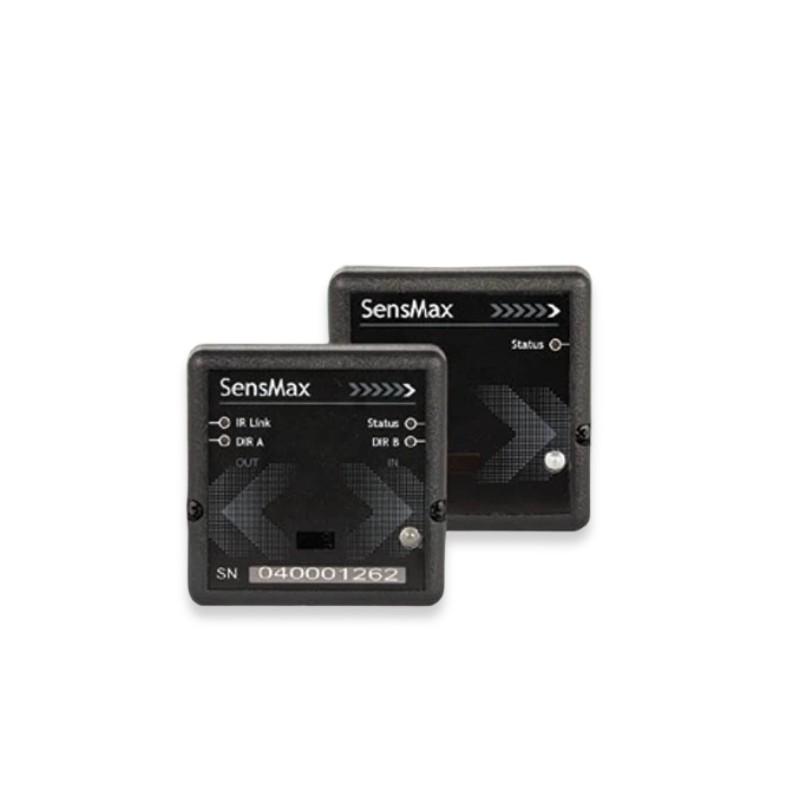

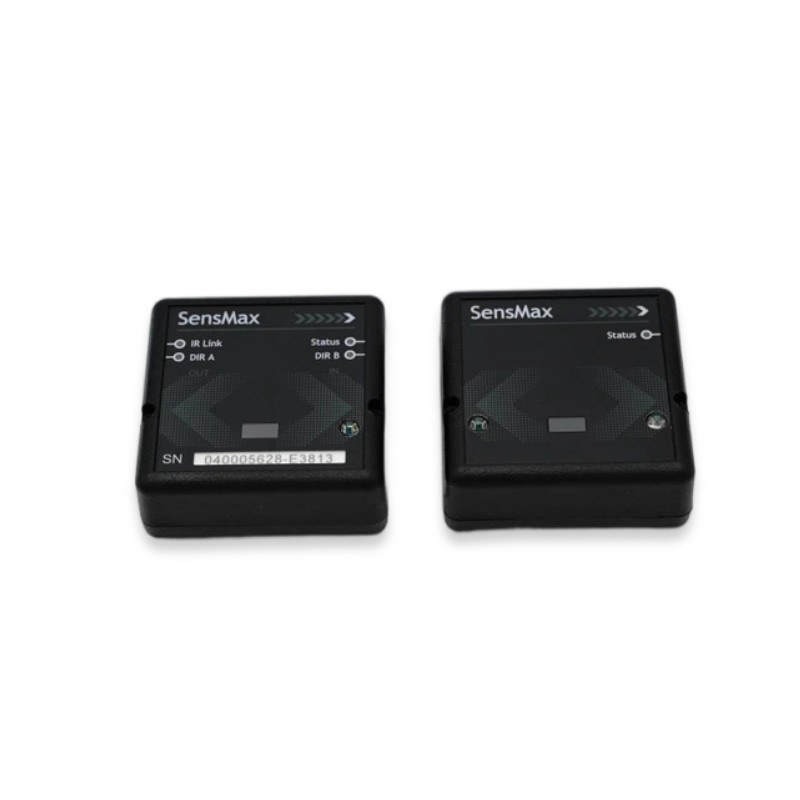

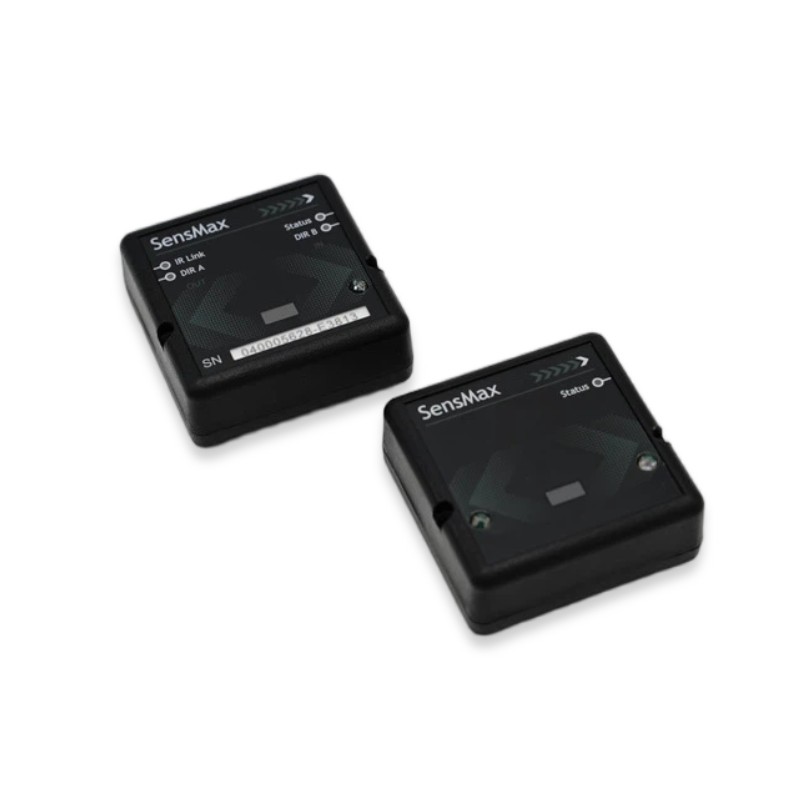

The sensor uses an infrared beam crossing principle to detect movement in both directions, allowing it to track people entering and exiting an area.
It is ideal for outdoor locations without electricity, such as parks and walking trails, where bi-directional counting is required.
The device features extended internal memory capable of storing up to 150 days of hourly data.

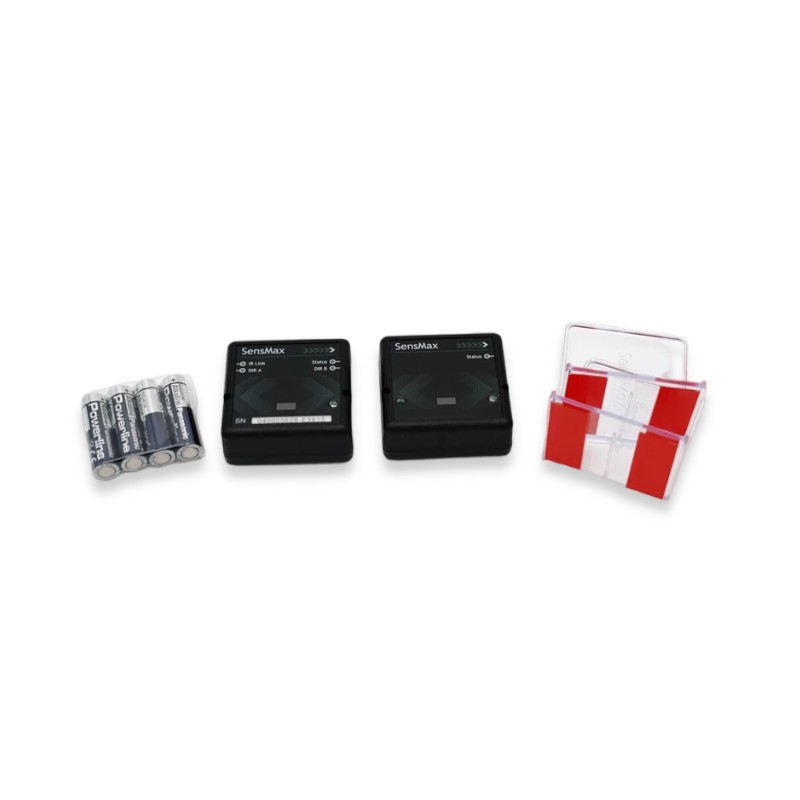

The sensor is powered by standard AA batteries, which provide an operating lifetime of up to one year.
The sensor functions optimally across widths of 1m to 5m, but it can support a maximum passage width of up to 10m.
Yes, the sensor can be equipped with an optional IP68-rated housing to provide protection against water and dust for outdoor use.
Since the sensor does not require an internet connection, data is retrieved manually using a compatible data collector.
