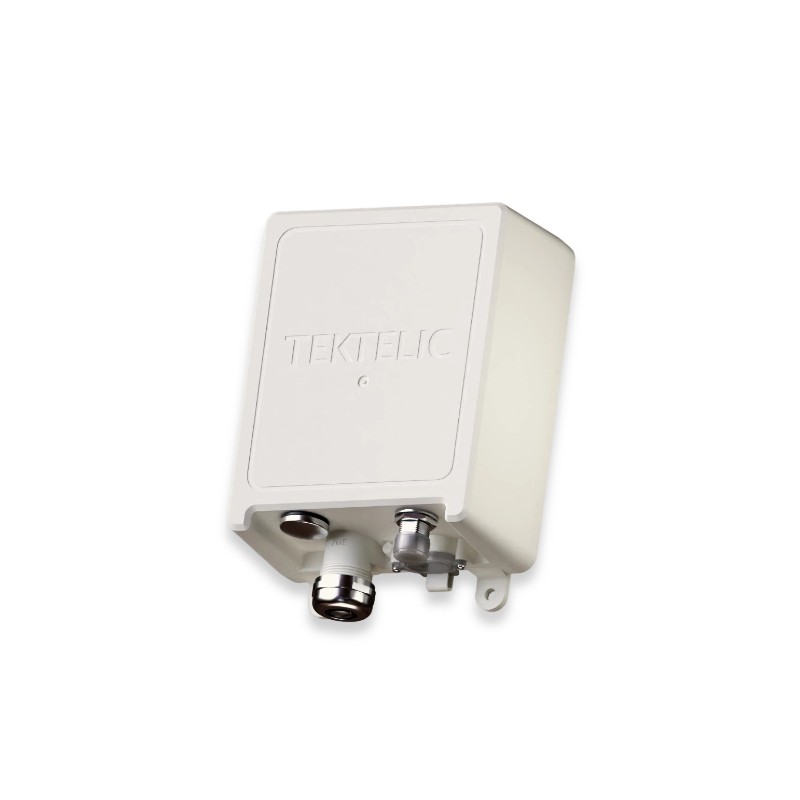

The TEKTELIC KONA Enterprise Gen2T is a carrier-grade outdoor LoRaWAN gateway with an IP67 rating designed for rooftops, equipment rooms, and other weather-exposed locations. The integrated LoRaWAN network server processes sensor data directly within the device and outputs it natively as BACnet or Modbus objects, allowing building management systems such as Niagara 4 to be integrated without additional middleware. The gateway is available in two versions: a base version with Ethernet-only backhaul, or a version with an additional integrated Cat-6 3G/4G/LTE modem and dual-SIM failover for locations without a reliable network connection. With time-duplex operation on eight receive channels and one transmit channel, as well as AES-128 encryption, the gateway is suitable for large-scale sensor networks in industry, education, and municipal settings.
| Equipment | |
|---|---|
| antenna | external |
| antenna connection | N-Female |
| Communication | |
| connectivity | LoRaWAN |
| gateway-backhaul | 4G/LTE, ethernet |
| Power supply | |
| power supply | PoE |
| General | |
| variants | LTE or Ethernet |
| Certifications | |
| enclosure protection class | IP67 |
| Others | |
| Brand | Tektelic |
The KONA Enterprise IoT Gateway provides versatile connectivity options, featuring both an integrated LTE cellular modem and Ethernet backhaul. Additionally, it supports optional external LoRaWAN and cellular antennas to optimize signal strength and coverage.
The gateway is designed for both indoor and outdoor use, making it suitable for outdoor coverage, warehouses, commercial farming, and university campuses. It is highly durable with an IP67 ingress protection rating and can operate in temperatures ranging from -40°C to +60°C.
The device supports power input via 802.3af PoE or Passive PoE (37 to 57 VDC). It is designed for efficiency with a typical power consumption of only 2.5 W.
The gateway supports Ethernet backhaul through an RJ-45 (10/100 BaseT) connection. Models equipped with cellular capabilities feature an integrated modem with the option for an external antenna.
The unit is compact and lightweight, offering flexible mounting options including pole, wall, tower, building, or DIN rail installations.
Yes, the gateway includes software features for remote upgrades, access control, and a firewall to ensure secure and efficient long-term operation.
