Apator Ultrimis NEO UL10 Water Meter (Ultrasonic)
SKU |
AP-UL_ NEO_ 10 |
incl. 19.0% VAT plus Shipping costs

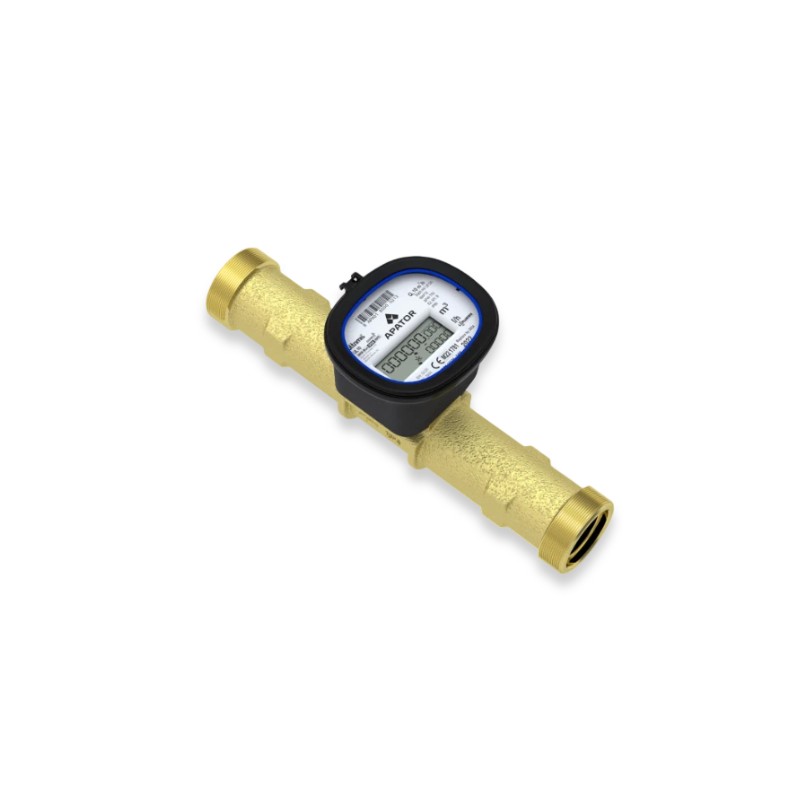

The Apator Ultrimis UL10 is an ultrasonic water meter for DN32 with a length of 260 mm and a 1 1/2" connection thread. It measures continuous flow rates Q3 of 10 m³/h and can handle peak flow rates up to Q4 of 12.5 m³/h; in the extended measuring range R800, it operates starting at a start-up threshold of just 3 l/h. The patented W-Sonic technology with triple ultrasonic beam guidance operates without moving parts, is wear-free, and is resistant to contamination. Communication is via Wireless M-Bus (OMS-certified, mandatory) with optional LoRaWAN (EU868) support; configuration and data retrieval are also available via NFC and SPIDAP Mobile. IP68 protection rating, operating pressure up to 16 bar (MAP16), brass housing, horizontal or vertical installation without inlet/outlet runs.
| Equipment | |
|---|---|
| sensors | water flow |
| Communication | |
| connectivity | wMBUS, LoRaWAN |
| frequency | EU868 |
| activation | OTAA |
| interfaces | NFC |
| Power supply | |
| power supply | battery, included, not replaceable |
| Certifications | |
| Drinking Water Certificate | ja |
| MID Certificate | and |
| Calibration Year | 2026 |
| enclosure protection class | IP68 |
| Others | |
| Brand | Apator |
