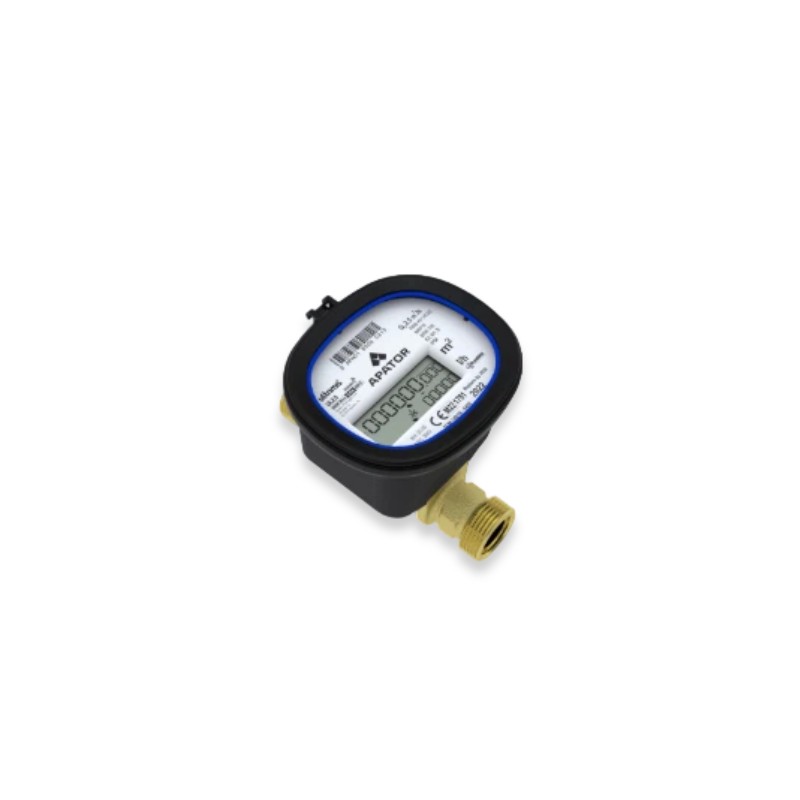

Apator Ultrimis NEO 2.5-01 Water Meter (Ultrasonic)
SKU |
AP-UL_NEO_2,5-01-CP80 |
incl. 19.0% VAT plus Shipping costs
The Apator Ultrimis NEO2.5 is a compact ultrasonic water meter for residential applications, DN15, G3/4" connection, available with either an 80 mm or 110 mm overall length, and available in either a brass or lightweight composite version (0.6 kg or 0.4 kg). It covers a continuous flow rate Q3 of 2.5 m³/h, measures starting from a flow rate of 1.0 l/h, and is MID-approved in the extended measurement range R2000 (SK 24-MI001-SMU076). Communication in hybrid mode primarily occurs via LoRaWAN (Class A) with automatic fallback to Wireless M-Bus (OMS4/B); configuration and data retrieval are also possible via NFC using the Spidap app. IP68 protection rating, operating pressure up to 16 bar, horizontal or vertical installation without inlet/outlet runs, 16-year battery life.
| Equipment | |
|---|---|
| antenna | internal |
| Communication | |
| connectivity | LoRaWAN, wMBUS |
| frequency | EU868 |
| interfaces | NFC |
| activation | OTAA |
| Power supply | |
| power supply | battery, included, not replaceable |
| General | |
| variants | Composite or Messing |
| variants | Installation length: 80 mm or Installation length: 110 mm |
| Certifications | |
| Drinking Water Certificate | ja |
| MID Certificate | and |
| Calibration Year | 2026 |
| Others | |
| Brand | Apator |
DataSheet_Apator_Ultrimis_EN.pdf
Download
