Apator Ultrimis Neo LoRaWAN UL25 Ultrasonic Water Meter

Price:

640.10 €
Apator Ultrimis Neo LoRaWAN UL25 Ultrasonic Water Meter
  2. Shop
  3. Apator Ultrimis Neo LoRaWAN UL25 Ultrasonic Water Meter
New

Apator Ultrimis Neo LoRaWAN UL25 Ultrasonic Water Meter

https://iot-shop.de/web/image/product.template/11815/image_1920?unique=cff3487

640.10 € 640.1 EUR 640.10 €

Not Available For Sale

  • Brand
  • variants
  • antenna
  • number of batteries
  • battery details
  • battery details
  • power supply
  • frequency
  • enclosure protection class
  • interfaces
  • connectivity
  • connectivity
  • sensors

This combination does not exist.

Contact Us
SKU
 AP-UL25-DN50-L200

incl. 19.0% VAT plus Shipping costs

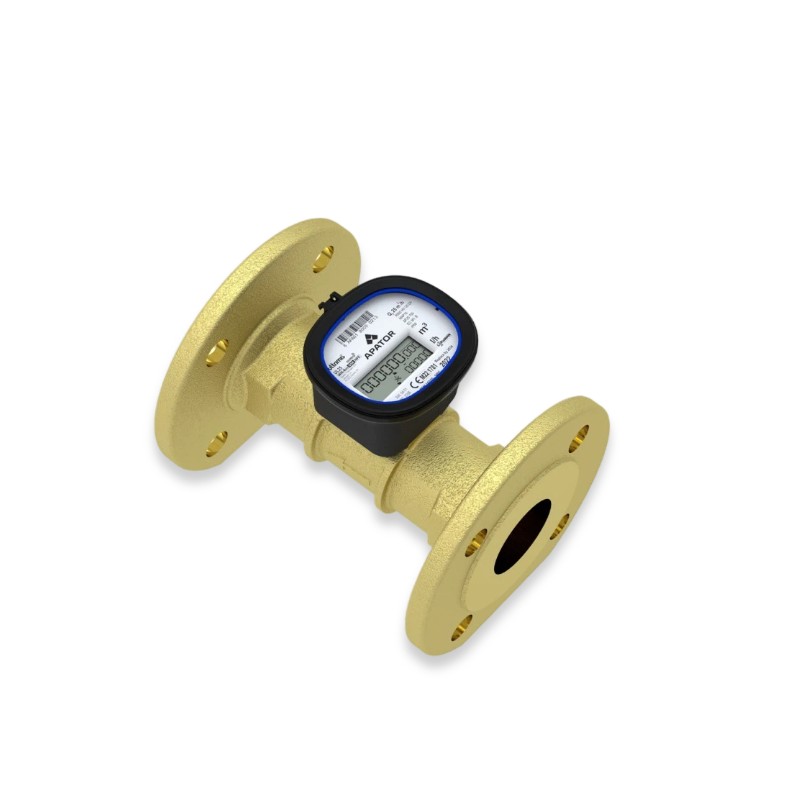

The Ultrimis UL25 is a maintenance-free ultrasonic water meter for DN50 with a nominal flow rate of 25 m³/h. The patented W-Sonic technology, which has no moving parts, ensures consistently precise measurements up to the R400 measurement range—regardless of water quality, installation orientation, or electromagnetic interference. Communication is available via WM-Bus, LoRaWAN (EU 868 MHz), or a combination of both with automatic switching in case of lost LoRaWAN reception. Configuration and data retrieval are possible via NFC. IP68 protection rating, operating pressure up to 16 bar, battery life up to 16 years. Certified to EN ISO 4064, MID-compliant, DVGW- and KIWA-certified.
Equipment
antenna internal
sensors water consumption
Communication
frequency EU868
interfaces NFC
connectivity LoRaWAN, wMBUS
Power supply
number of batteries 2
battery details AA, Lithium-Metall, nicht aufladbar
power supply battery, included, not replaceable
General
variants L200 or L270 or L300
Certifications
enclosure protection class IP68
Others
Brand Apator
DataSheet_Apator_Ultrimis_EN.pdf
Download
What type of technology is used for measurement and which water temperatures is it compatible with?

The device utilizes patented W-Sonic ultrasonic technology. It is designed for water supply systems handling cold water up to 50°C and warm water up to 70°C.
Does the meter require specific straight pipe sections for installation?

This model can be installed in any orientation, including horizontal or vertical positions, and does not require straight inlet or outlet pipe lengths before or after the meter.
What is the expected battery life and protection rating?

The water meter features a long battery life of up to 16 years and is rated IP68, ensuring complete protection against dust and continuous immersion in water.
What are the flow rate capabilities and precision range for the UL25 variant?

The UL25 variant has a nominal flow rate (Q3) of 25 m3/h and an overload flow rate (Q4) of 31.25 m3/h. It features a standard measurement range of R250, with optional R400 or R500 ranges available.
How do the L200, L270, and L300 variants differ in size?

These variants represent the total installation length of the device, available in 200 mm (L200), 270 mm (L270), and 300 mm (L300) to suit different plumbing configurations.
What connection options and weight specifications apply to these DN50 models?

The DN50 variants are available with either a flange or G 2 1/2 thread connection, with weights ranging between 6.29 kg and 6.95 kg depending on the configuration.
