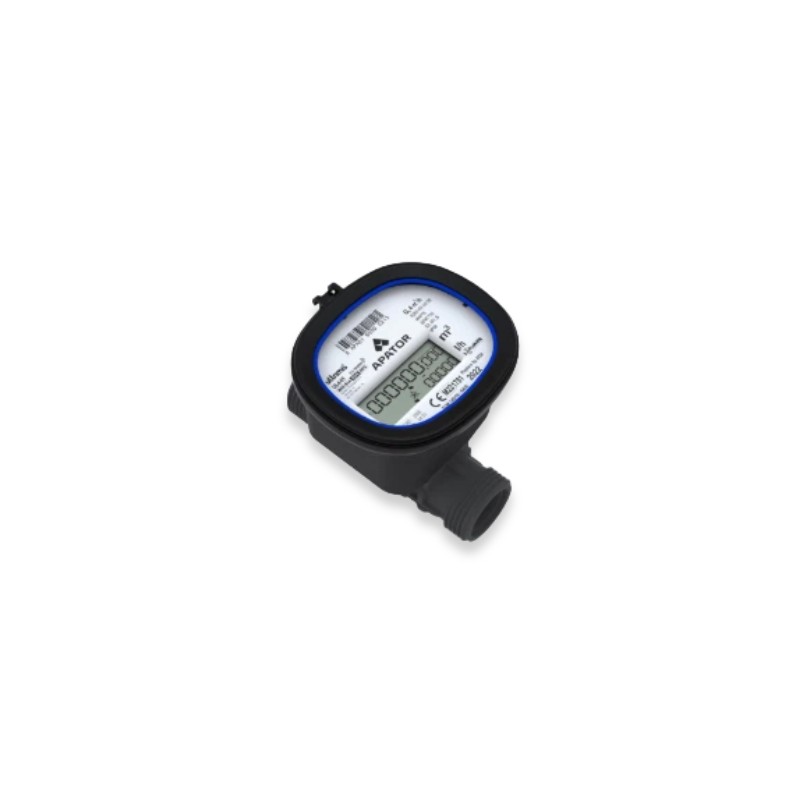

Apator Ultrimis NEO UL4-01 Water Meter (Ultrasonic)
SKU |
AP-UL-NEO-4-01-CP130 |
incl. 19.0% VAT plus Shipping costs
The Apator Ultrimis UL4-01 is an ultrasonic water meter with a composite housing, DN20, G1" connection, available in two lengths: 105 mm or 130 mm. It covers a continuous flow rate Q3 of 4 m³/h, with an overload capacity up to Q4 of 5 m³/h, and in the extended measurement range R800, it operates starting at a start-up threshold of 1.2 l/h. Communication is via Wireless M-Bus (OMS-certified, mandatory) with optional LoRaWAN (EU868, license-free); configuration and data retrieval are also possible via NFC and SPIDAP Mobile. Protection class IP68, operating pressure up to 16 bar (MAP16), temperature class T30/T50/T70, horizontal or vertical installation without inlet/outlet runs, standard battery life up to 12 years, optionally up to 16 years.
| Equipment | |
|---|---|
| sensors | water consumption |
| Communication | |
| connectivity | LoRaWAN |
| frequency | EU868 |
| General | |
| variants | Einbaulänge: 130mm or Einbaulänge: 105mm |
| variants | Composite |
| Certifications | |
| Calibration Year | 2026 |
| MID Certificate | and |
| Drinking Water Certificate | ja |
| Others | |
| Brand | Apator |
DataSheet_Apator_Ultrimis_EN.pdf
Download
