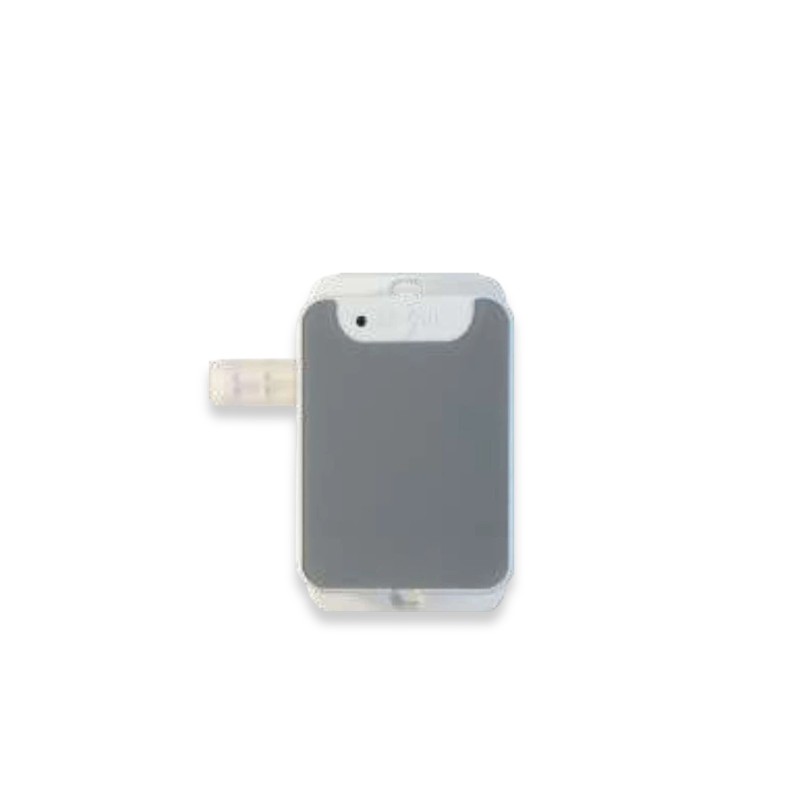

Arwin LRS20100-0000-0001 SENSO8 LoRaWAN Temperature and Humidity Sensor
SKU |
ARW-LRS20100-0000-0001 |
incl. 19.0% VAT plus Shipping costs
The SENSO8 LRS20100 is a compact, battery-powered LoRaWAN sensor designed to monitor temperature and humidity in indoor and industrial environments. It measures temperatures from -20 °C to 60 °C and relative humidity from 10% to 100% RH with high accuracy and transmits the data wirelessly via the LoRaWAN® protocol. Thanks to extremely low power consumption, it achieves a battery life of up to over 10 years, depending on the transmission interval. The sensor supports AES-encrypted data transmission, OTAA/ABP activation, and operates as a Class A terminal. Typical applications include cold chains, warehouses, hospitals, laboratories, and smart building environments for continuous environmental monitoring and alerts when thresholds are exceeded.
| Equipment | |
|---|---|
| antenna | internal |
| sensors | ambient temperature, air humidity |
| Communication | |
| activation | OTAA, ABP |
| frequency | EU868 |
| interfaces | Downlink |
| connectivity | LoRaWAN |
| Power supply | |
| battery details | Lithium, nicht aufladbar, C-Cell |
| number of batteries | 1 |
| power supply | battery, included, replaceable |
| Others | |
| Marke2 | Arwin |
DataSheet_Arwin-LRS20100_EN.pdf
Download
