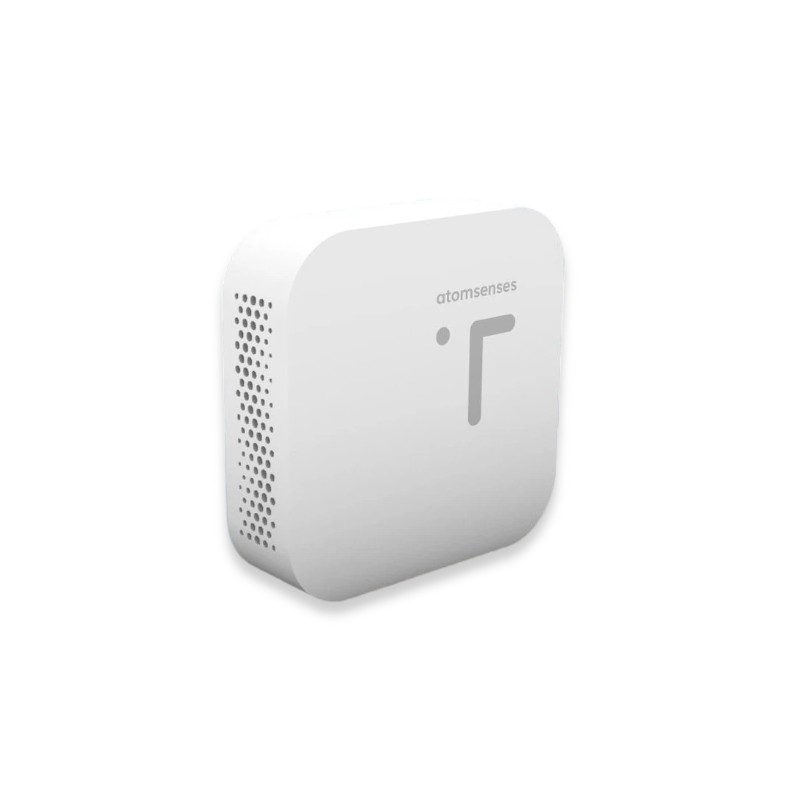

The AS-107 is a wall-mountable 3-in-1 indoor sensor for the simultaneous measurement of temperature (±0.3 °C), relative humidity (±3 % RH), and oxygen concentration (0–30 % vol, ±5% FS) using an electrochemical measurement principle. Typical applications: confined spaces, tanks, cold storage facilities, and industrial plants with a risk of oxygen deficiency. Data transmission via LoRaWAN EU868/US915 (OTAA/ABP, Class A), powered by two replaceable ER14505 lithium batteries (2 × 2,700 mAh, up to 5 years of battery life). Compact wall-mounted housing (98 × 98 × 29.5 mm), IP30.
| Equipment | |
|---|---|
| sensors | ambient temperature, air humidity, Sauerst |
| antenna | internal |
| Communication | |
| connectivity | LoRaWAN |
| frequency | EU868 |
| activation | OTAA, ABP |
| Power supply | |
| power supply | battery, included, replaceable |
| Certifications | |
| enclosure protection class | IP30 |
| Others | |
| Brand | Atomsenses |
DataSheet-AS-107_EN.pdf
Download
