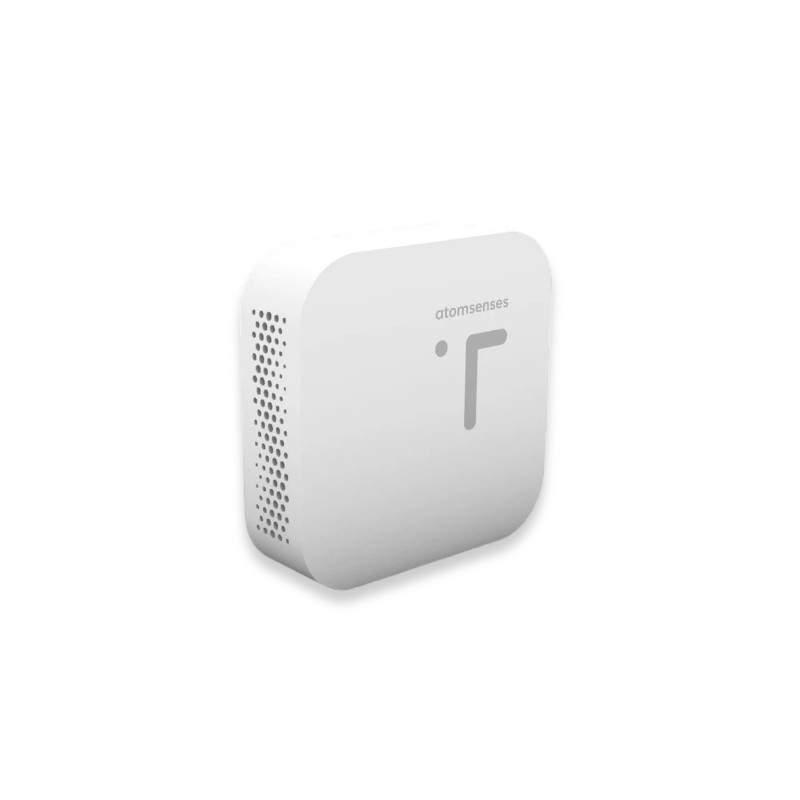

The AS-110 is a wall-mountable 3-in-1 indoor sensor for simultaneously measuring temperature (±0.2 °C), relative humidity (±1.8% RH), and sulfur dioxide (SO₂, 1–20 ppm). Typical applications: industrial facilities, power plants, chemical production sites, and areas with a risk of SO₂ exposure. Data transmission via LoRaWAN EU868/US915 (OTAA/ABP, Class A), powered by three replaceable ER14505 lithium batteries (3 × 2,700 mAh). Compact wall-mounted housing (98 × 98 × 29.5 mm), IP30.
| Equipment | |
|---|---|
| sensors | ambient temperature, air humidity, Sulfur dioxide |
| antenna | internal |
| Communication | |
| connectivity | LoRaWAN |
| frequency | EU868 |
| activation | OTAA, ABP |
| Power supply | |
| power supply | battery, included, replaceable |
| Certifications | |
| enclosure protection class | IP30 |
| Others | |
| Brand | Atomsenses |
DataSheet_AS-110_EN.pdf
Download
