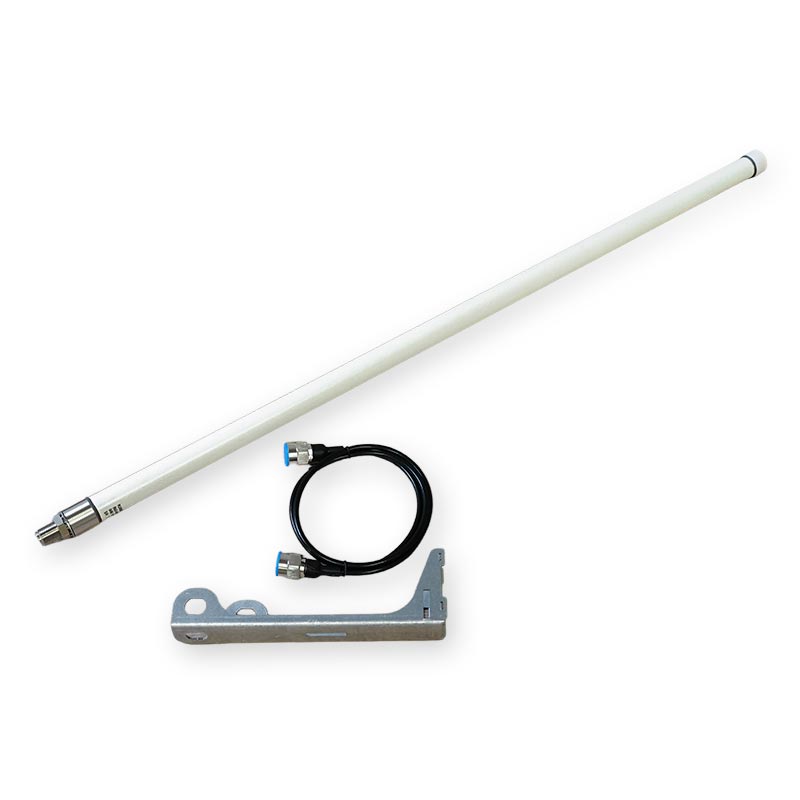

The ACCIOT-KAN09 (6 dBi) omnidirectional outdoor LoRa antenna kit offers a complete solution for high-performance outdoor LoRaWAN installations. The rugged antenna with IP67 protection is waterproof, UV-resistant, and can withstand wind speeds of up to 200 km/h. With a frequency range of 860–928 MHz and efficient signal transmission, it ensures reliable connectivity. The kit includes a sturdy mounting bracket made of galvanized steel and a 1 m LMR195 coaxial cable with N-connectors (IP68). Vertical polarization, a VSWR <2.0:1, and up to 50 W of power make this antenna kit ideal for professional IoT and LoRa applications.
| Equipment | |
|---|---|
| antenna cable length | 1m |
| antenna connection | N-Male |
| Communication | |
| frequency | EU868 |
| Certifications | |
| enclosure protection class | IP68 |
| Others | |
| Brand | Kerlink |
Select dBi value - cleverly cover short or long range
Antennas with a high dBi value concentrate the signal more strongly and reach IoT devices at a greater distance, while antennas with a lower dBi value offer broader coverage at close range. This allows you to find exactly the right antenna for your IoT network depending on the network structure and location requirements.
3 dBi antenna
5 dBi antenna
7 dBi antenna
