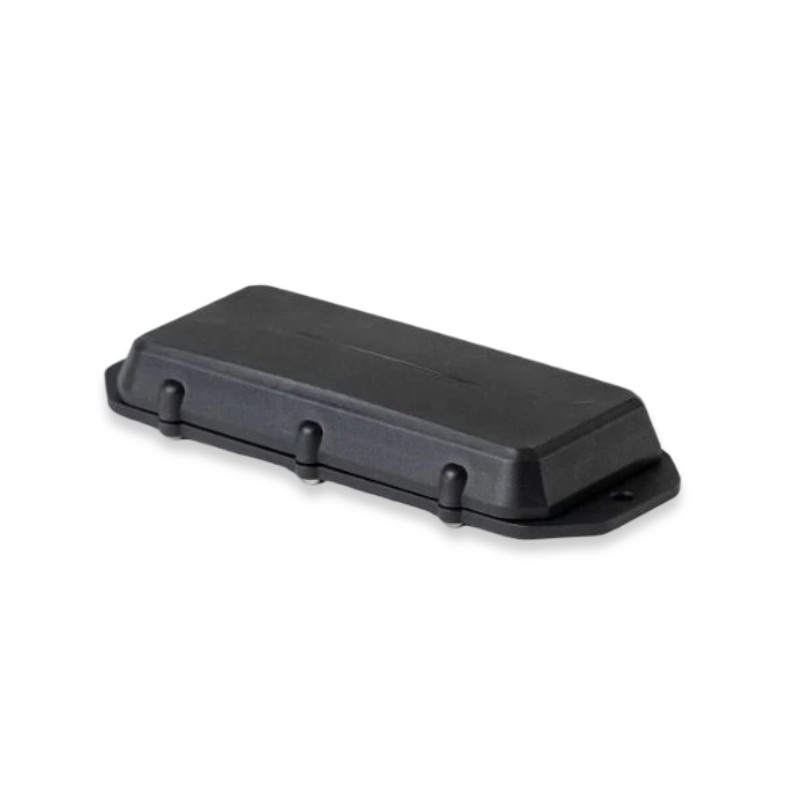

Digital Matter Manta Fusion LTE-M/NB-IoT GPS Tracker with Bluetooth Gateway
SKU |
DIM-MANTA-FUSION-CATMNB-BLE |
incl. 19.0% VAT plus Shipping costs
The MANTA FUSION from Digital Matter is a highly accurate and rugged asset tracker for indoor and outdoor use that supports Cellular LTE-M (Cat-M1) and NB-IoT, enabling reliable location tracking worldwide. It features a Bluetooth 5.2 gateway that detects nearby Bluetooth tags and sensors, allowing devices without their own cellular connection to be monitored as well. Location is determined via GPS, GLONASS, Galileo, and BeiDou, as well as through Wi-Fi access point and cell tower scans, enabling precise positioning even indoors. Adaptive tracking automatically adjusts the reporting rate to the asset’s movement, saving energy while providing detailed location information when the asset is in motion. The device features magnetic activation, tamper protection, geofencing, and configurable alerts for shocks, tilts, or rotations. It is powered by three user-replaceable AA lithium batteries, which enable a battery life of up to 10 years with once-daily location updates. The MANTA FUSION is compact, extremely rugged, waterproof to IP68, and shock-resistant to IK07, and allows data to be stored even when there is no network coverage. Intelligent features such as real-time tracking, operating hour logging, integration of third-party Bluetooth sensors, and remote device management via a cloud platform ensure comprehensive monitoring and management. End-to-end data transmission is secured by AES-256 encryption, and the device is suitable for applications in logistics, machine and equipment monitoring, container management, medical devices, and general asset tracking.
Operation & Platform Options for Digital Matter Devices
Digital Matter GPS/BLE and Edge/Core devices can be operated flexibly across various platforms.
Digital Matter Device Manager
Device Manager is Digital Matter's cloud platform for the centralized management, configuration, and monitoring of devices.
Monthly fees (including 24 uplinks per day):
Device type Price per device per month
GPS/BLE devices €1.19
Edge/Core devices €1.49
For more demanding requirements (e.g., more uplinks), we can provide you with a customized quote upon request.
Forwarder (data forwarding)
A forwarder can be used to forward device data to external platforms or dashboards (e.g., Datacake).
Forwarder €18.90 one-time fee per connection/month
Telemetric Guru
Telemetric Guru is a powerful telematics and IoT platform for visualizing, analyzing, and evaluating device data.
Monthly fees (including Device Manager & 24 uplinks per day):
Device type Price per device per month
GPS/BLE devices €1.59
Edge/Core devices €3.79
Device Manager is already included in Telemetric Guru. For specific requirements, we would be happy to provide you with a customized quote.
Invoices are issued upon placement of the order, in advance, for the full amount covering one year. The contract may be terminated at the end of each billing period, subject to a 3-month notice period.
| Equipment | |
|---|---|
| antenna | internal |
| sensors | vibration / force, inclination, acceleration / movement, position |
| Communication | |
| connectivity | NB-IoT, Bluetooth, GNSS, LTE-M |
| interfaces | Drittanbieterplattform, Parametriehardware |
| Power supply | |
| power supply | battery, included, replaceable |
| number of batteries | 3 |
| battery details | AA, Lithium, nicht aufladbar |
| Certifications | |
| enclosure protection class | IP68, IK07 |
| Others | |
| Marke2 | Digital Matter |
DataSheet_DigitalMatter-MantaFusion_EN.pdf
Download
