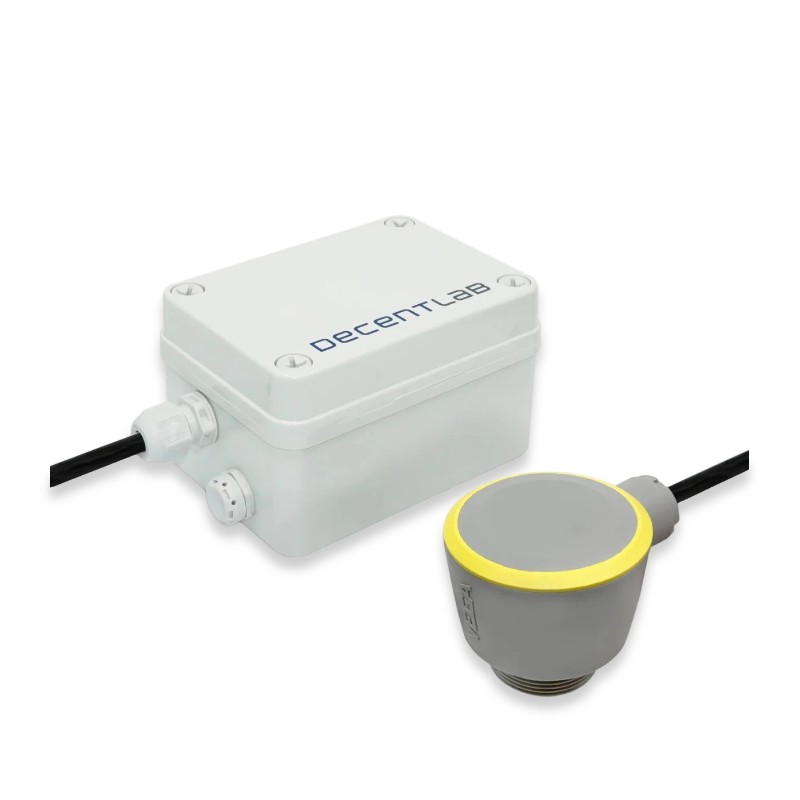

The DL-RAD-001 distance sensor is a precise radar sensor for non-contact distance and level measurement. It is suitable for applications such as general distance measurement, level monitoring, and water level and flood monitoring. The sensor measures distances from 0 to 20 m with a resolution of 1 mm and an accuracy of ≤ 2 mm. The 8° beam angle enables precise measurements even in tight installation spaces. The device operates as a LoRaWAN Class A device and is powered by two C-size alkaline batteries. The sensor module is connected via a 5-meter cable. Its compact dimensions ensure easy installation in a variety of environments.
| Equipment | |
|---|---|
| sensors | level, distance / proximity |
| antenna | internal |
| Communication | |
| frequency | EU868 |
| connectivity | LoRaWAN |
| interfaces | UART, Downlink |
| activation | ABP, OTAA |
| Power supply | |
| power supply | battery, included, replaceable |
| battery details | LR 14, Alkaline, nicht aufladbar |
| number of batteries | 2 |
| Certifications | |
| enclosure protection class | IP67 |
| Others | |
| Brand | Decentlab |
