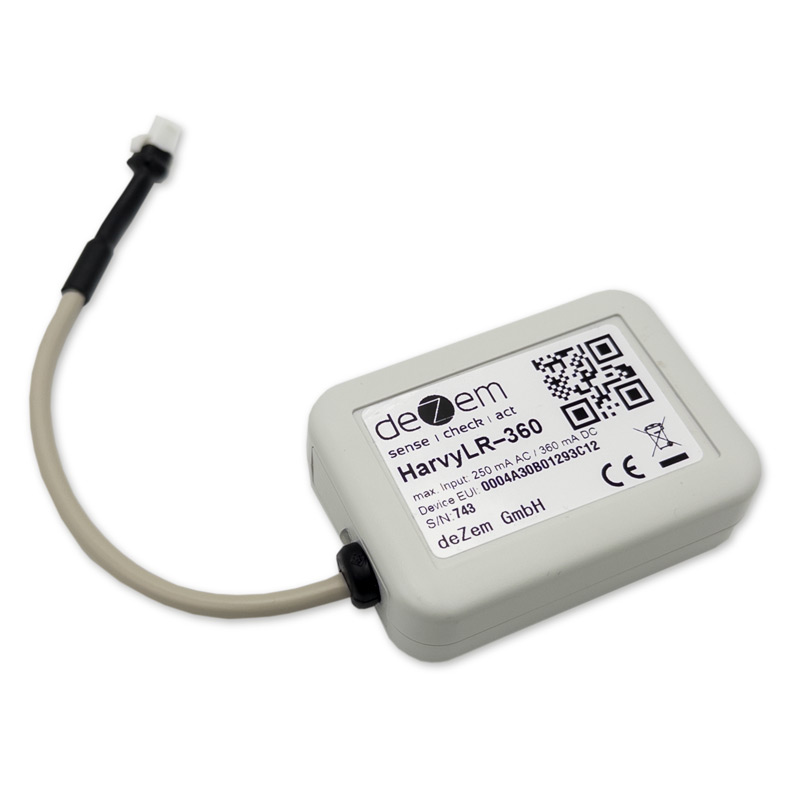

deZem HarvyLR-360 Self-Sustaining Power Meter
SKU :
DZM-HARVY-LR-360excl. 19% VAT plus Shipping costs
The sensor from deZem can digitize common analog signals from 4-20 mA as well as alternating currents up to 250 mA. A typical application is the detection of rms currents in electrical main or sub-distribution boards or directly at the equipment. The HarvyLR-360 needs no external power supply and no battery. Therefore, the current sensor runs autonomously and maintenance-free, drawing its necessary energy from its environment. The principle behind it: Energy Harvesting.
You can also get the matching folding current transformers from deZem from us. The folding current transformer must be dimensioned close to the current used so that the Harvy can absorb enough operating energy.
A typical application example would be the wireless reading and recording of effective currents in electrical main and sub-distribution boards of factory halls, building complexes or outdoor premises.
| Equipment | |
|---|---|
| Sensor | AC and DC currents |
| Communication | |
| Connectivity | LoRaWAN |
| Power supply | |
| Power supply | selbstversorgend |
| Interfaces | |
| Interfaces | Bluetooth |
| Certifications | |
| Certifications | IP20 |
| Weights / dimensions | |
| Dimensions | 22 x 69 x 49 mm |
