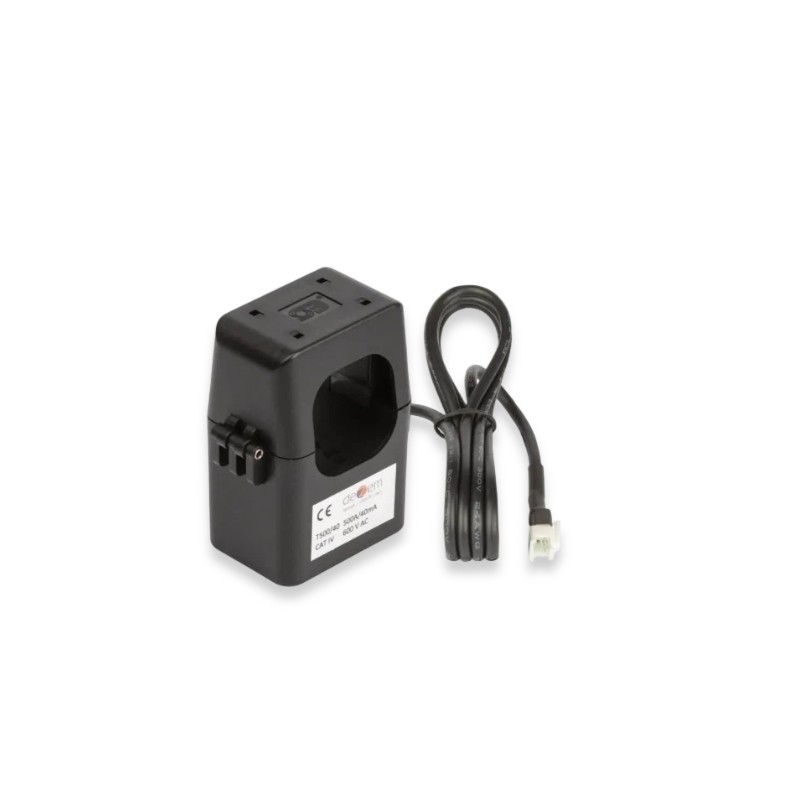

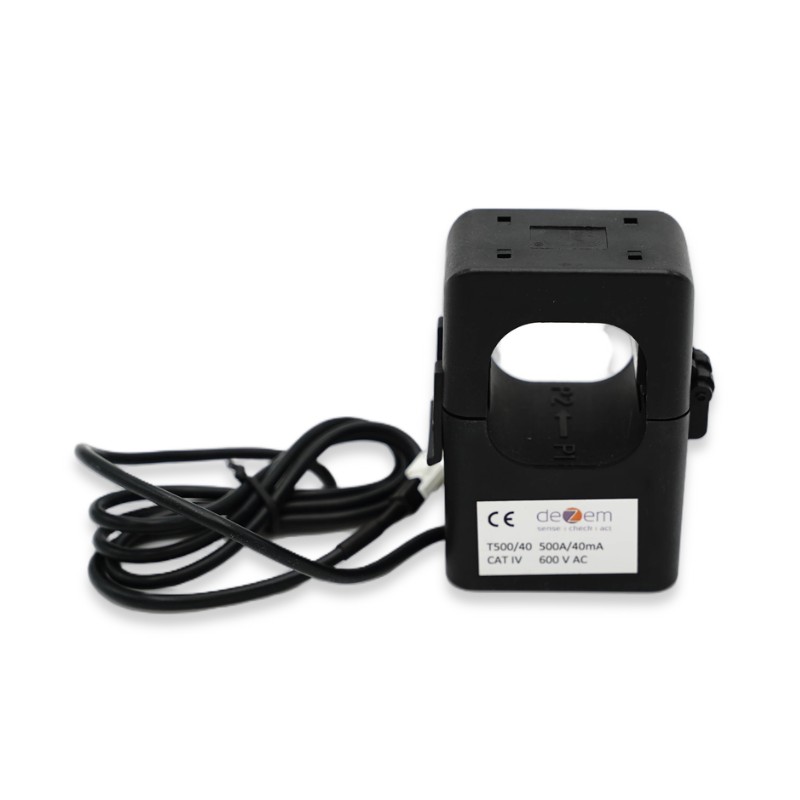

decem T500/40 (JST) Foldable Current Transducer
SKU |
DZM-KSW-T500/40 |
incl. 19.0% VAT plus Shipping costs
The deZem T500/40 is a high-quality clamp-on current transformer for current measurements up to 500 A in main and sub-distribution panels as well as directly on equipment. The 500/40 mA current-to-voltage ratio allows for use over long cable lengths without significant signal loss, thanks to the low output current. The 36-mm window accommodates round conductors up to 500 mm², and the integrated protection diode safeguards the output against damage. Thanks to reverse-polarity-protected connectors and compatibility with standard patch cables, up to four current transformers can be connected with minimal wiring effort—no power supply required. Compatible with the deZem ZM8C and the self-powered LoRaWAN current sensor HarvyLR. IP20 protection rating, operating temperature −20 °C to +55 °C, flame-retardant per UL-94V0.
| Equipment | |
|---|---|
| sensors | electricity |
| Others | |
| Brand | deZem |
DataSheet_deZem-Klappstromwandler_DE.pdf
Download
