ELECROW CIL12901M-1 ThinkNode M1 Communication Node (LoRa Meshtastic)

Price:

54.62 €
ELECROW CIL12901M-1 ThinkNode M1 Communication Node (LoRa Meshtastic)
  2. Shop
  3. ELECROW CIL12901M-1 ThinkNode M1 Communication Node (LoRa Meshtastic)
New

ELECROW CIL12901M-1 ThinkNode M1 Communication Node (LoRa Meshtastic)

https://iot-shop.de/web/image/product.template/11528/image_1920?unique=dafdf0a

54.62 € 54.62 EUR 54.62 €

Not Available For Sale

  • Brand
  • antenna
  • battery details
  • interfaces
  • connectivity
  • frequency
  • number of batteries
  • connectivity
  • number of batteries
  • power supply
  • power supply
  • interfaces

This combination does not exist.

*Can't order too much quantity!
Contact Us
SKU
 ELE-CIL12901M-1

incl. 19.0% VAT plus Shipping costs

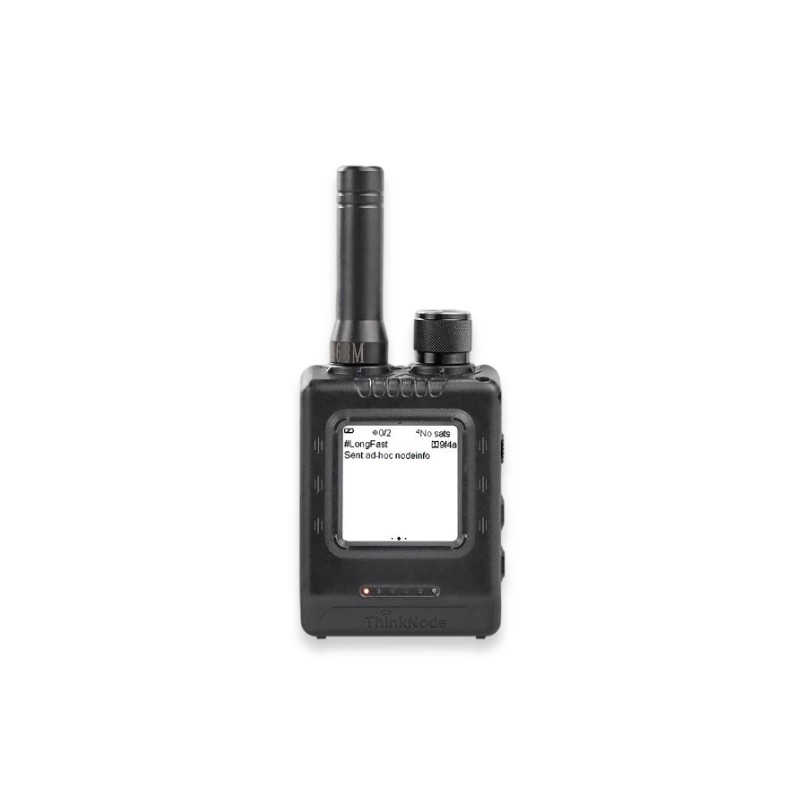

The ThinkNode-M1 transceiver is a compact, high-performance LoRa communication node designed for outdoor, IoT, and emergency applications. It is based on the Nordic nRF52840 microcontroller and also utilizes the SX1262 LoRa chip to ensure reliable wireless connections over long distances. Thanks to the pre-installed Meshtastic firmware, the device can be used directly for decentralized mesh networks—ideal in areas without cellular coverage.An integrated GPS module (including GPS, GLONASS, BeiDou, and QZSS) enables precise positioning, while the 1.54-inch E-Ink display shows important data such as status or messages in an energy-efficient manner. Operation is via several buttons as well as a smartphone app via Bluetooth. With its 1200 mAh battery, the ThinkNode-M1 achieves a runtime of over 48 hours. Thanks to its rugged construction, external antenna, and versatile features, it is particularly suitable for outdoor adventures, environmental monitoring, and safety-critical communication.
Equipment
antenna external
Communication
interfaces Bluetooth, USB
connectivity LoRaWAN, GNSS
frequency EU868
Power supply
battery details Li-Ion
number of batteries 1, 1
power supply battery, included, replaceable, USB
Others
Brand Elecrow
DataSheet_ELECROW-CIL12901M-1_EN.pdf
Download
What are the primary applications for this device?

The ThinkNode-M1 is a high-performance, multi-function device designed for outdoor adventures, environmental monitoring, and emergency communications. It also supports data recording and exporting via the Meshtastic app.
Which firmware comes pre-installed on the unit?

The device comes pre-installed with Meshtastic firmware, enabling mesh networking capabilities right out of the box.
What type of display does the device use?

It features a 1.54-inch monochrome electronic paper display (EPD) with a resolution of at least 200*200 and a 2-second global refresh time.
What are the power requirements and options for this device?

The device supports a 5V/1A power input via a Type-C interface and can be powered by either USB or a lithium battery.
What are the physical dimensions and weight of the product?

The device is housed in an ABS plastic enclosure measuring 82*51.6*26.3mm. It weighs 81g with the enclosure and 58g without it.
Does the device have internal timekeeping and alert features?

Yes, it includes a built-in RTC clock for accurate time recording and an integrated buzzer for audio alerts.
