ELSYS ELT-MOD-PT100 PT100 Module (for ELT2)

Price:

98.65 €
ELSYS ELT-MOD-PT100 PT100 Module (for ELT2)
  2. Shop
  3. ELSYS ELT-MOD-PT100 PT100 Module (for ELT2)
New

ELSYS ELT-MOD-PT100 PT100 Module (for ELT2)

https://iot-shop.de/web/image/product.template/12044/image_1920?unique=44d91cc

98.65 € 98.65 EUR 98.65 €

Not Available For Sale

  • Brand

This combination does not exist.

Contact Us
SKU
 ELS-ELT-MOD-PT100

incl. 19.0% VAT plus Shipping costs

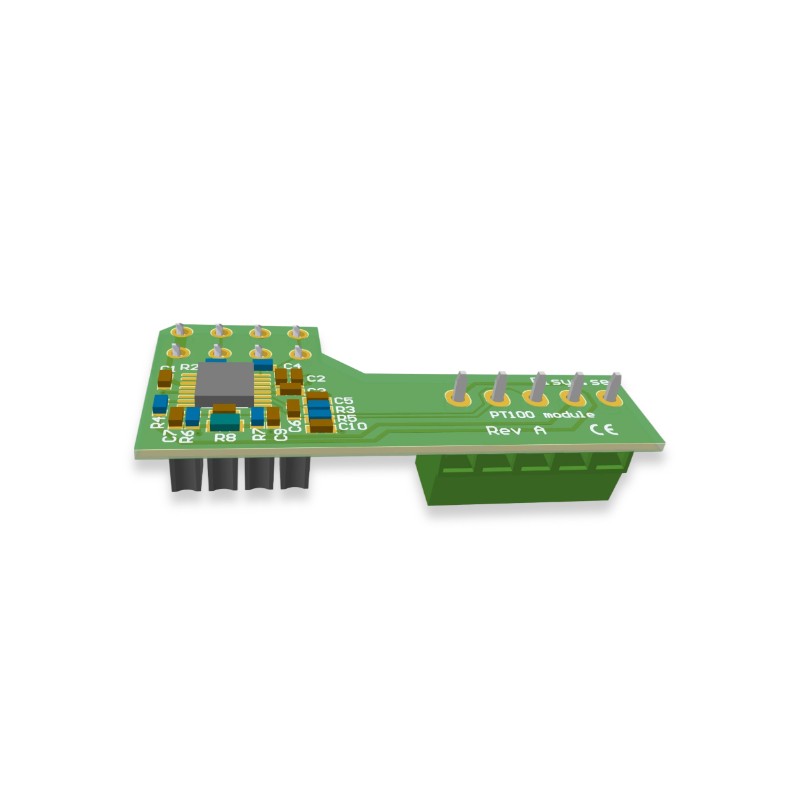

The Elsys ELT PT100 Module is an expansion module for the ELT-2 sensor designed to connect PT100 platinum temperature sensors using 2- or 4-wire technology. It enables temperature measurements in the range from −200 °C to +790 °C and is installed directly inside the ELT-2 housing—powered by the ELT-2’s internal battery without the need for a separate power supply.
Brand ELSYS
DataSheet_Elsys-PT100-Modul_EN.pdf
Download
What is the primary application for this module?

This module fits inside the ELT LoRa and is used to connect a PT100 platinum sensor for temperature measurement.
What types of sensor wiring are compatible with this module?

The module supports both 2-wire and 4-wire RTD connections and features a terminal block for easy installation.
What is the measurement range of the PT100 module?

The module is capable of measuring temperatures within a range of -200 to 790 °C.
How is the module powered and what is its energy footprint?

The module is powered by the ELT LoRa internal battery and is characterized by very low energy consumption.
What is the measurement accuracy of this device?

The module provides an accuracy of ± 0.1 °C between -40 and 200°C, and ± 0.5 °C for the full span, in addition to any sensor deviation.
What software settings are required for the module to work?

To use the module, you must set the external sensor setting in the ELT LoRa software to PT100 and ensure the external period is not set to zero.
