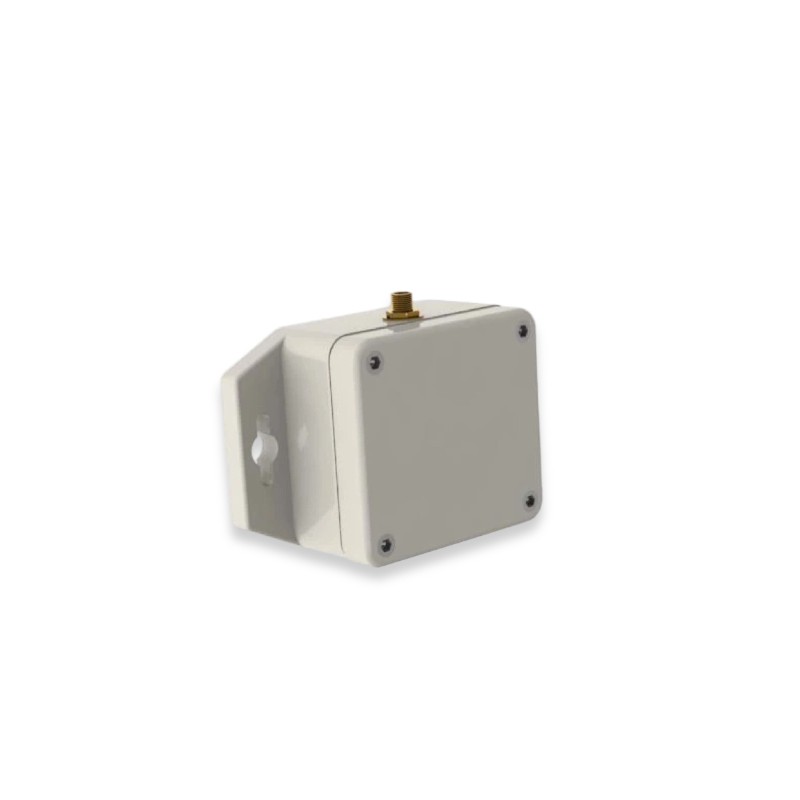

The Elsys ELT Distance Radar LoRa Sensor from Elsys is a powerful solution for precise distance measurement in IoT applications. Using state-of-the-art radar technology, the sensor reliably measures distances from 0.15 to 15 meters—even through materials such as plastic or thin walls. Its rugged IP67-rated housing makes it ideal for demanding outdoor applications such as level measurement, smart parking, or industrial monitoring. Additionally, the sensor measures temperature, humidity, air pressure, and motion. Thanks to LoRaWAN, it offers energy-efficient data transmission with a battery life of up to 5 years. NFC enables easy configuration via smartphone.
| Equipment | |
|---|---|
| antenna | internal |
| sensors | distance / proximity |
| Communication | |
| activation | OTAA, ABP |
| frequency | EU868 |
| interfaces | NFC, Downlink |
| connectivity | LoRaWAN |
| Power supply | |
| number of batteries | 1 |
| battery details | Lithium, nicht aufladbar |
| power supply | battery, included, replaceable |
| Certifications | |
| enclosure protection class | IP67 |
| Others | |
| Brand | ELSYS |
The radar sensor can measure distances ranging from 0.15 to 15.0 meters with an accuracy of 2.67 to 2.83 mm and a resolution between 1.2 and 2.4 mm at 25 °C.
Yes, the device features an IP67-rated enclosure and is built to operate in extreme temperatures ranging from -40 to 60 °C and humidity levels from 0 to 100% RH.
The device is powered by a single 3.6V AA Lithium battery. The expected battery life is less than 10 years, depending on device configuration and environmental conditions.
The sensor supports configuration through both NFC and LoRaWAN downlink commands, allowing you to adjust sampling intervals and other parameters remotely or locally.
In addition to radar distance, the device monitors temperature, humidity, atmospheric pressure, and features an accelerometer for motion detection.
