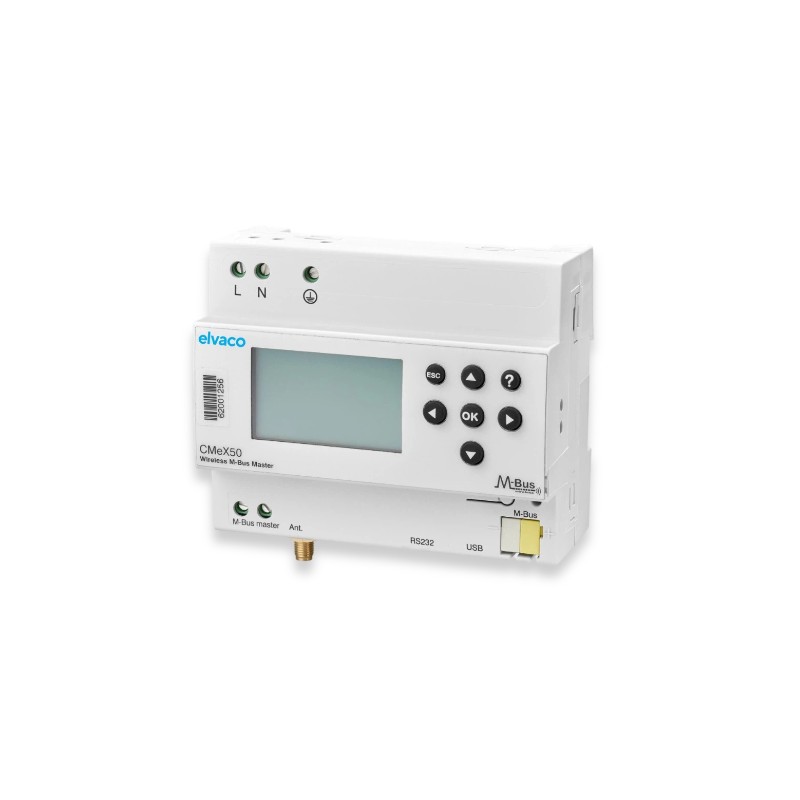

The Elvaco CMeX50 is a combined wireless M-Bus receiver and wired M-Bus master for integrating up to 800 wireless M-Bus meters (S1/T1/C1, 434 or 868 MHz, AES-128) as well as 32 wired M-Bus devices. The IR interface enables wireless pairing with other CMe/CMeX products. Mounts on a DIN rail (35 mm), power supply 100–240 VAC, protection class IP20, operating temperature −25 °C to +55 °C. Graphic LCD (128 × 64 pixels) with 7 backlit buttons for local operation. OMS-compliant per EN 13757.
An external antenna with a magnetic base is included.
An external antenna with a magnetic base is included.
| Equipment | |
|---|---|
| antenna connection | SMA-Female |
| antenna | external |
| Communication | |
| connectivity | wMBUS, MBus |
| Power supply | |
| power supply | mains voltage |
| Certifications | |
| enclosure protection class | IP20 |
| Others | |
| Brand | Elvaco |
DataSheet_CMeX50_EN.pdf
Download
