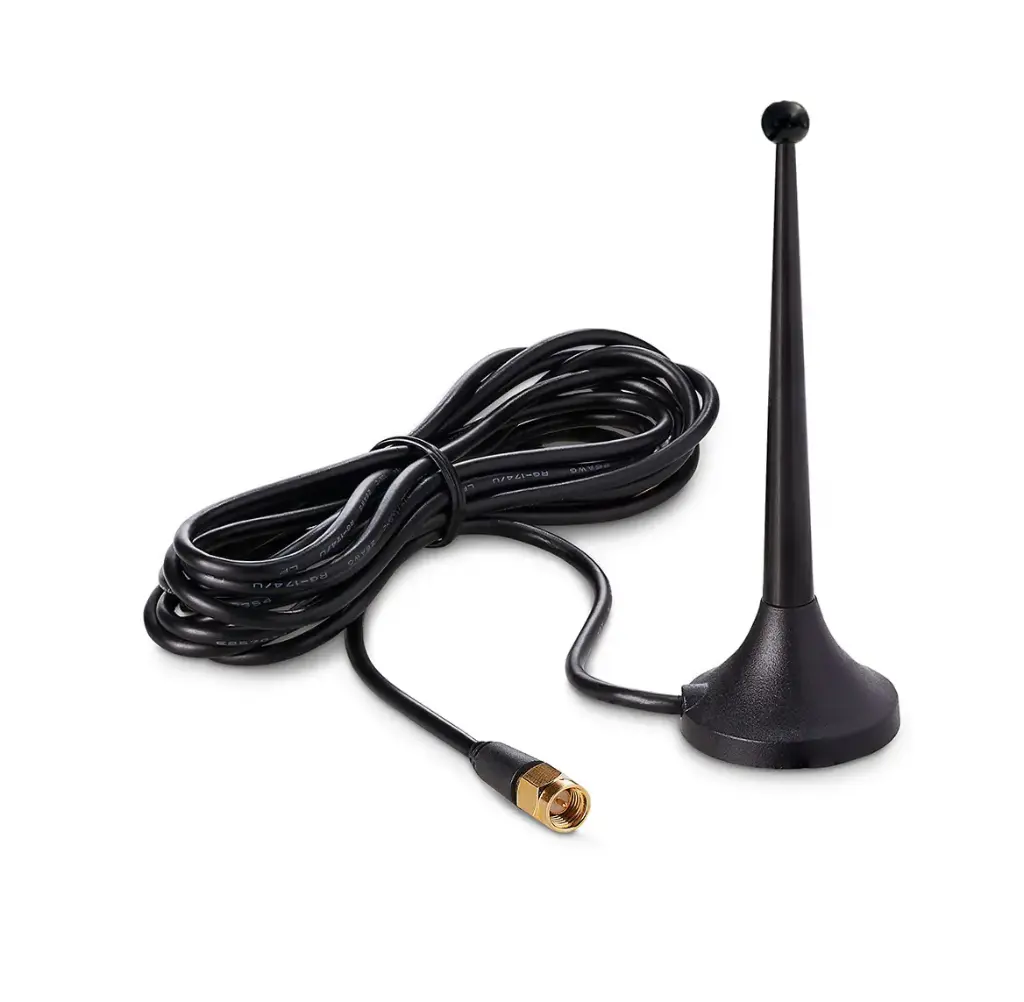

The Elvaco magnetic base antenna extends the communication range of LoRaWAN, NB-IoT, and cellular devices through easy installation on metal surfaces without drilling or screws. It covers the 700–960 MHz and 1700–2700 MHz frequency bands, making it suitable for EU868, NB-IoT, and common LTE bands. The 2.5-meter RG-174 cable with an angled SMA connector allows for flexible cable routing. 50 Ω impedance, RoHS-compliant, dimensions Ø 29 × 90 mm, weight approx. 50 g.
| Brand | Elvaco |
DataSheet_Elvaco-Antenne_EN.pdf
Download
What is the primary purpose of this antenna?
What type of surfaces is this antenna best suited for?
What are the physical dimensions and weight of the product?
What kind of cable and connector are provided?
Is the antenna suitable for outdoor environments?
What level of signal gain does this antenna offer?
This magnet mount antenna is designed to increase the communication range for various technologies, including LoRaWAN, NB-IoT, and mobile networks.
The antenna features a magnet mount specifically designed for installation on metal surfaces.
The antenna has a base diameter of 29 mm, a height of 90 mm, and weighs approximately 50 grams.
The product includes a 2.5-meter RG-174 cable with an angled SMA connector.
Yes, the antenna is RoHS compliant and carries an IP65 rating, indicating protection against dust and water ingress.
The antenna provides varying gain based on the frequency, with a maximum performance of 4.34 dB at the 2700 MHz band.
