Elvaco CMi4160 G2 MCM for Diehl Sharky 775/Scylar INT8

Price:

133.16 €
Elvaco CMi4160 G2 MCM for Diehl Sharky 775/Scylar INT8
  2. Shop
  3. Elvaco CMi4160 G2 MCM for Diehl Sharky 775/Scylar INT8
New

Elvaco CMi4160 G2 MCM for Diehl Sharky 775/Scylar INT8

https://iot-shop.de/web/image/product.template/11845/image_1920?unique=05b3ce8

133.16 € 133.16 EUR 133.16 €

Not Available For Sale

  • Brand
  • connectivity
  • activation
  • activation
  • antenna
  • frequency
  • power supply

This combination does not exist.

Contact Us
SKU
 ELV-1100569

incl. 19.0% VAT plus Shipping costs

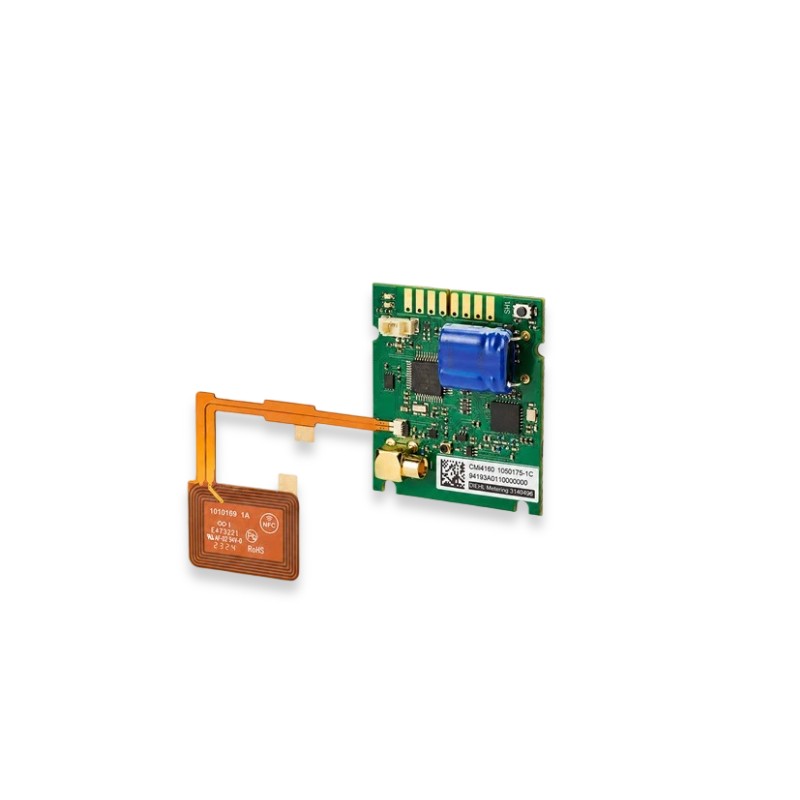

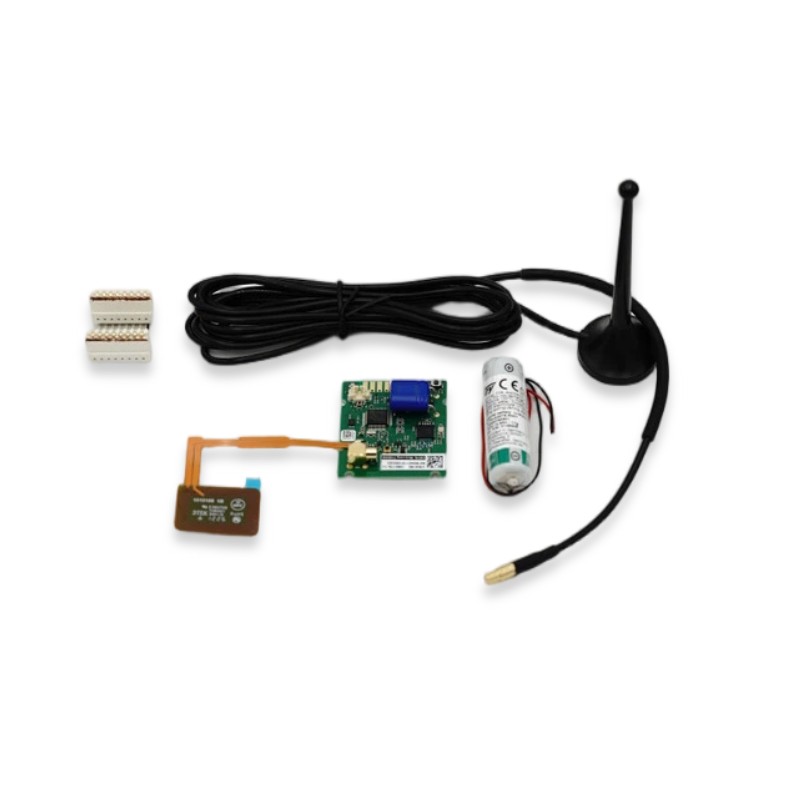

The Elvaco CMi4160 is a retrofittable LoRaWAN communication module for Diehl SHARKY 775 heat/cooling meters and SCYLAR INT 8 energy meters. It transmits meter data via LoRaWAN (OTAA/ABP) to a server and can be installed in the existing meter housing without special tools. Choose between an internal or external antenna; configuration is via NFC using the Elvaco OTC app (iOS/Android) or via LoRaWAN downlink. Automatic activation upon water flow simplifies commissioning. With EcoMode enabled, battery life is up to 11 years. CE/RoHS-compliant according to 2014/53/EU (RED).
Equipment
antenna external or internal
Communication
connectivity LoRaWAN
activation OTAA, ABP
frequency EU868
Power supply
power supply battery, included, replaceable
Others
Brand Elvaco
DataSheet_Elvaco-CMi4160-G2_EN.pdf
Download
Which meters are compatible with this connectivity module?

This module is designed for use with Diehl SHARKY 775 and SCYLAR INT 8 energy calculators.
How do I configure the device settings?

The module can be configured using the Elvaco OTC mobile application, which is available for both Android and iOS platforms.
How long can I expect the battery to last?

The device features a battery lifetime of approximately 11 years when the EcoMode feature is enabled.
What are the different ways to activate the module?

There are three activation methods: detection of continuous water flow for 3 hours, using the manual push button, or via the Elvaco OTC App.
What type of connector is used for the antenna?

The device is equipped with an MCX connector that supports both internal and external antenna configurations.
How does EcoMode help with power management?

EcoMode optimizes the device's energy consumption by automatically adapting the transmit interval based on the current radio environment conditions.
Is it possible to change the device configuration remotely?

Yes, the module supports remote configuration through the use of LoRaWAN downlink commands.
