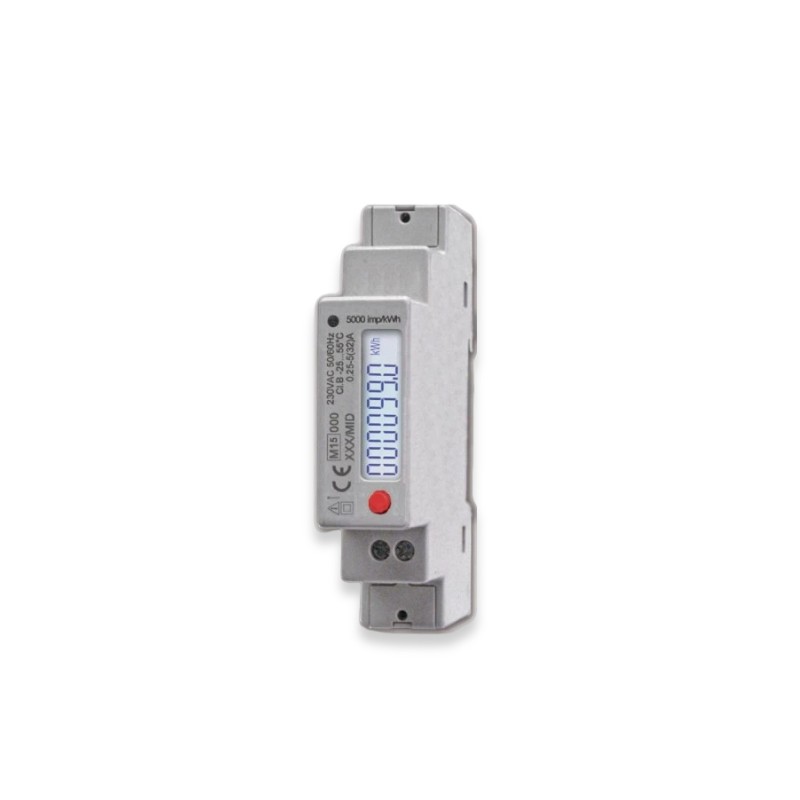

The EMU 1/40 is a compact single-phase energy meter for direct connection up to 40 A and is ideal for precise consumption measurement in residential, commercial, and industrial applications. With a width of just 1TE (18 mm), it enables space-saving DIN rail mounting. The meter offers MID B + D approval as well as accuracy class B (1%) according to EN50470-3 for metrology-compliant billing. An S0 pulse output (1000 pulses/kWh) ensures easy integration into energy management systems. An M-Bus interface compliant with EN13757 is available as an option. Displays voltage, current, active power, power factor, and frequency. Ideal for energy monitoring, load management, and transparent consumption control.
| Equipment | |
|---|---|
| sensors | electricity, power consumption |
| Communication | |
| connectivity | MBus |
| Power supply | |
| power supply | mains voltage |
| Certifications | |
| enclosure protection class | IP51, IP20 |
| Others | |
| Brand | EMU |
Datenblatt_EMU1-40_DE.pdf
Download
