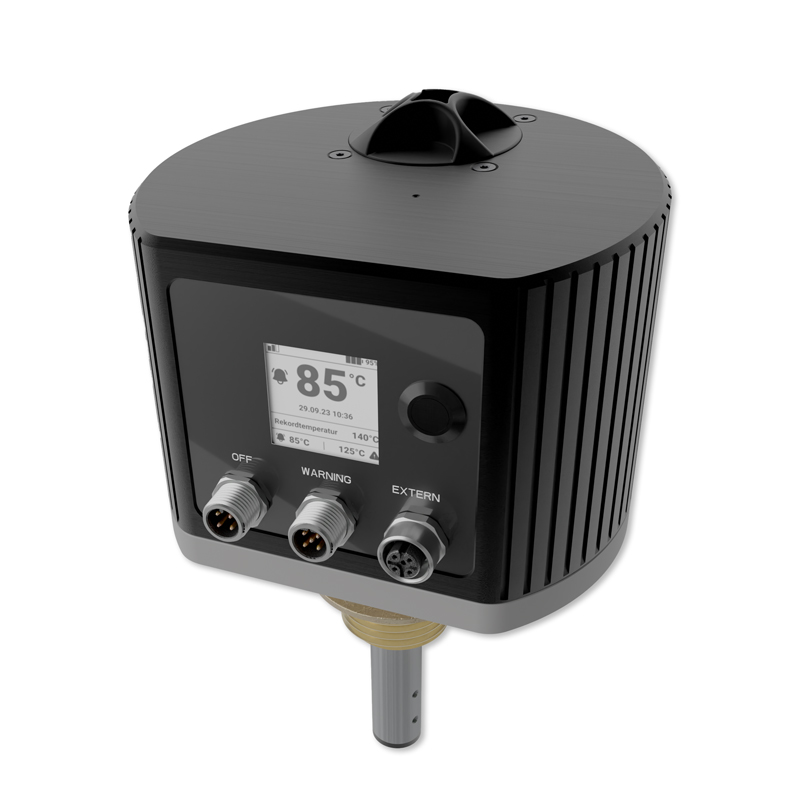

Discover the future of transformer monitoring with the HOOTS HTM-100 sensor system. This system enables wireless temperature monitoring of transformers and remote transmission of data to the cloud via LTE-M. An individual API interface for your own system is also provided. With an internal battery system that enables up to 10,000 transmission cycles, the HOOTS HTM-100 is self-sufficient and location-independent.
Thanks to a user-friendly mobile app, you can set measurement and transmission cycles individually and receive alerts when limit values are exceeded. The system measures the air temperature in the range from -20C to +125C with an accuracy of 2C.
The thermal transformer protection is integrated via an independent opener or closer that works in parallel with the recording. The system is self-sufficient, low-maintenance and offers simple plug-and-play installation. With wireless data transmission via LTE and Bluetooth Low Energy as well as cloud and integrated data storage, the HOOTS HTM-100 is the ideal solution for your transformer monitoring.
| Equipment | |
|---|---|
| Antenna | Internal |
| Sensor | Temperature |
| Type of connection | 4 polig |
| Colour | black |
| Material | Plastic, Metall |
| Communication | |
| Connectivity | LTE-M |
| Power supply | |
| Power supply | Battery |
| Power supply details | D Batterie |
| Number of power supplies | 1 |
| Measurement parameters | |
| Measurement accuracy | ± 0,75°C |
| Certifications | |
| Certifications | IP54 |
| Weights / dimensions | |
| Dimensions | 200 x 122 x 123 mm |
