Jooby EPHIR RMS LoRaWAN BK-G Module (external antenna, Metrix)

Price:

1.19 €
Jooby EPHIR RMS LoRaWAN BK-G Module (external antenna, Metrix)
  2. Shop
  3. Jooby EPHIR RMS LoRaWAN BK-G Module (external antenna, Metrix)

Jooby EPHIR RMS LoRaWAN BK-G Module (external antenna, Metrix)

https://iot-shop.de/web/image/product.template/11326/image_1920?unique=218aa92

1.19 € 1.19 EUR 1.19 €

Not Available For Sale

  • variants
  • Brand
  • connectivity
  • enclosure protection class
  • antenna
  • power supply
  • battery details
  • frequency

This combination does not exist.

Contact Us
SKU
 JOB-304868

incl. 19.0% VAT plus Shipping costs

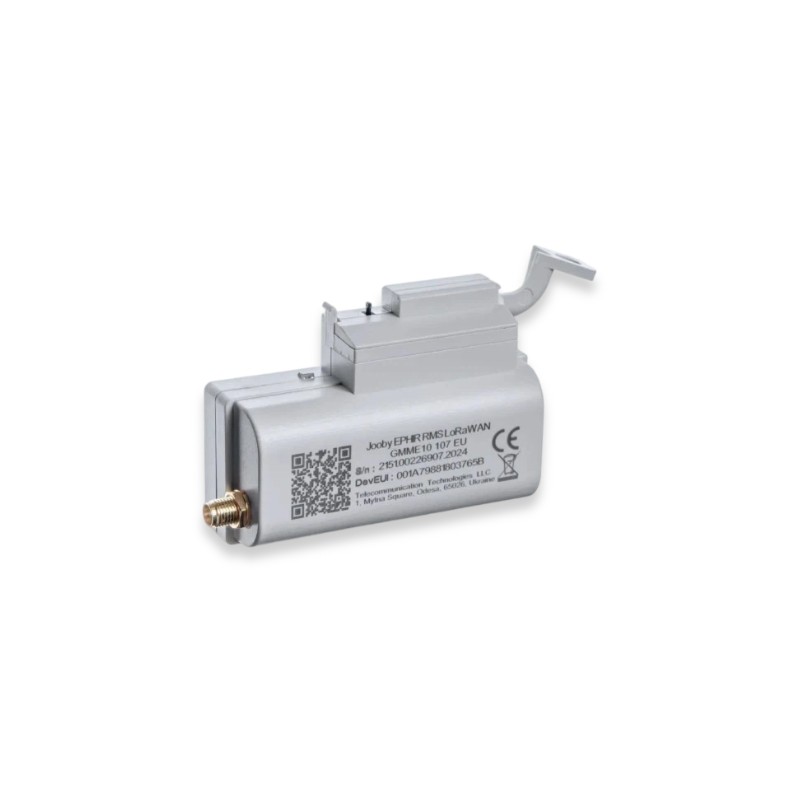

The Jooby Ephir RMS is a LoRaWAN retrofit module for the remote reading of Metrix gas meters (G1.6 to G16) without removing the meter. It records meter readings hourly, daily, monthly, or annually and transmits them to a server via LoRaWAN EU868 at a configurable interval (default: every 4 hours). A smart sensor detects tampering attempts, such as magnetic interference or unauthorized removal, and triggers an alarm. Battery life: 5–15 years; data storage capacity for 15 years; 256 event log entries. Available with an external antenna with a 0.5 m or 3 m cable. ABS housing, IP50, operating temperature −30 °C to +85 °C.
Equipment
antenna external
Communication
connectivity LoRaWAN
frequency EU868
Power supply
power supply battery, included, not replaceable
battery details Lithium-Thionylchlorid, nicht aufladbar
General
variants Antenne 0,5m or Antenne 3,0m
Certifications
enclosure protection class IP50
Others
Brand Jooby
DataSheet.Jooby-EphirRMS_DE.pdf
Download
What are the primary applications for this radio module?

This module is designed for the remote reading of Metrix gas meters using LoRaWAN technology. It enables the automatic transmission of consumption data, although the quality of the radio signal depends on local conditions and physical obstacles.
How does the external antenna improve the device's performance?

The external antenna version supports a maximum gain of 5 dBi, compared to the 2.33 dBi gain of the internal antenna version. This higher gain can improve the communication range in challenging radio conditions.
What are the specifications of the JOB-304868 variant?

The JOB-304868 is the specific variant of this module that features an external antenna and a 0.5-meter cable.
What are the specifications of the JOB-304880 variant?

The JOB-304880 is the specific variant of this module that features an external antenna and a 3.0-meter cable.
Can this module be used in areas with poor signal penetration?

The module is intended for LoRaWAN remote reading applications. Since transmission quality is influenced by obstacles between the device and the base station, the external antenna version—which offers up to 5 dBi gain—can be used to improve performance in difficult radio environments.
What is the maximum antenna gain supported by these modules?

Both variants of the module support an external antenna with a maximum antenna gain of 5 dBi to optimize communication range.
