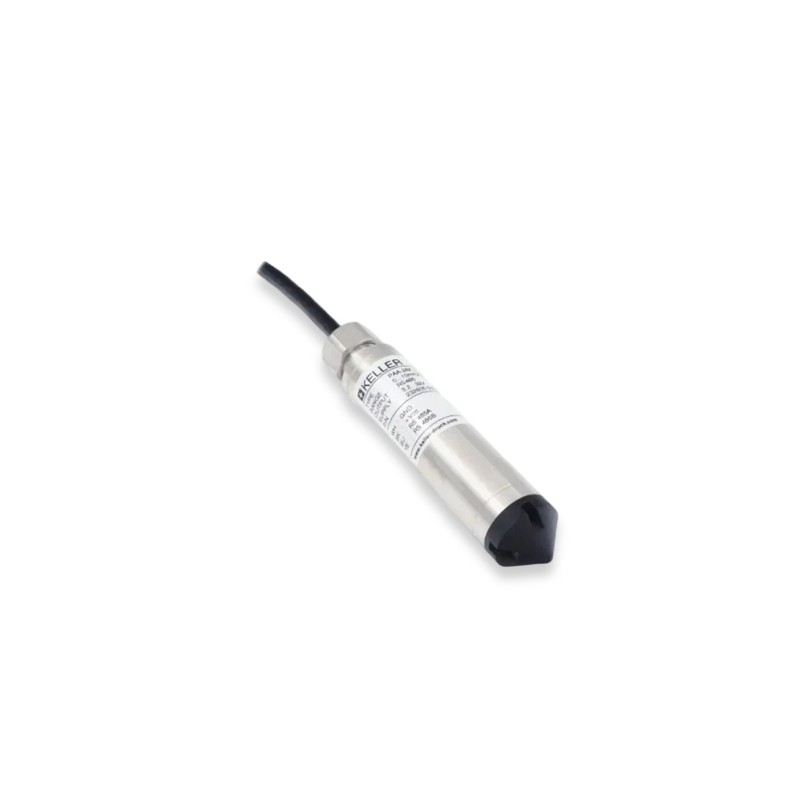

The Keller 232645.0232 is a variant of the high-precision piezoresistive level probe Series 26X, designed for absolute pressure measurement in the range of 0.8–2 bar. The hermetically sealed pressure sensor chip in a rugged stainless steel housing (AISI 316L) provides an accuracy of ±0.1% FS and a total error band of ±0.25% FS within the compensated temperature range of 0–50 °C. The RS485 interface (Modbus RTU or KELLER bus protocol) can be combined with an analog interface and is software-scalable.
The 26X series is available in numerous other pressure ranges (relative and absolute pressure from 0–0.1 to 0–25 bar) as well as with various cable lengths and output signals. Other variants are available upon request.
The 26X series is available in numerous other pressure ranges (relative and absolute pressure from 0–0.1 to 0–25 bar) as well as with various cable lengths and output signals. Other variants are available upon request.
| General | |
|---|---|
| variants | 0,8...2bar, Gesamtfehlerband digital: 0.25, RS485, Kabellänge 10m, Genauigkeit 0.1 |
| Certifications | |
| enclosure protection class | IP68 |
| Others | |
| Brand | Keller Pressure AG |
DataSheet_Keller-Serie-26X_DE.pdf
Download
