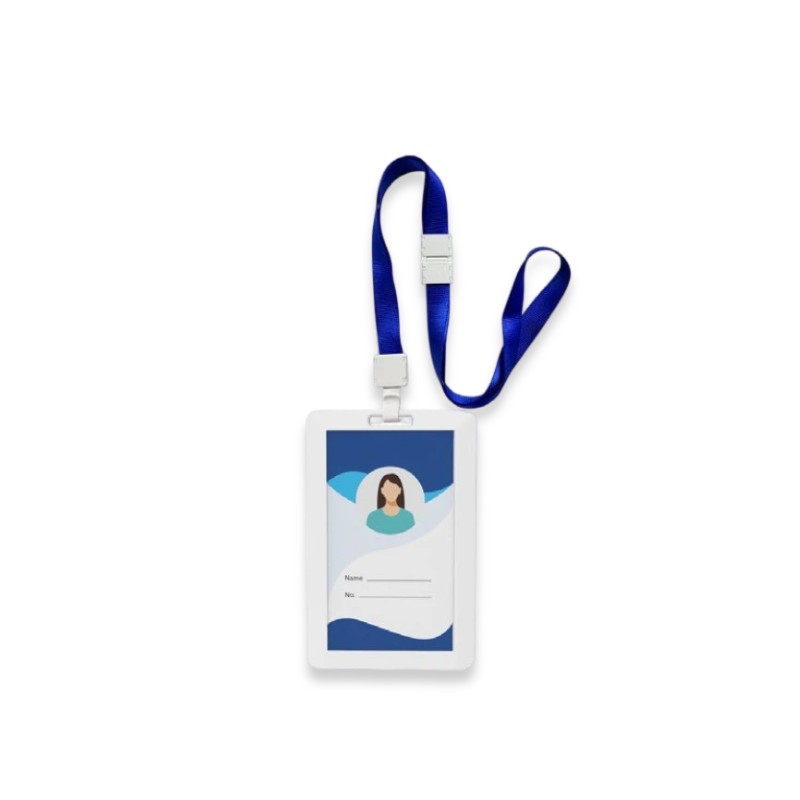

The Lansitec Badge Tracker (Part Number LA-100-02490) is a compact LoRaWAN tracker designed for precise personnel and asset tracking in large facilities. Measuring 95 × 61 × 7 mm, the device combines GNSS, Bluetooth 5.0, and LoRaWAN for seamless indoor (1–3 m) and outdoor positioning (<2.5 m CEP). The integrated 3-axis accelerometer detects movement or falls, thereby conserving power in standby mode. The 600 mAh Li-ion battery provides up to five months of standby time. AES128 encryption, configurable iBeacon broadcasts, vibration detection, NFC, and low-battery alerts ensure security and flexible applications, ranging from employee management and visitor tracking to vehicle and fleet monitoring.
| Equipment | |
|---|---|
| sensors | position, bluetooth, position, fall, acceleration / movement |
| antenna | internal |
| Communication | |
| connectivity | Bluetooth, GNSS, LoRaWAN |
| frequency | EU868 |
| Power supply | |
| power supply | battery, included, replaceable, USB |
| number of batteries | 1 |
| battery details | Li-Ion |
| Others | |
| Marke2 | Lansitec |
DataSheet_Lansitec-100-02490_EN.pdf
Download
