Macnman 804 MacSync LNCT X1

Price:

305.71 €
Macnman 804 MacSync LNCT X1
  2. Shop
  3. Macnman 804 MacSync LNCT X1
New

Macnman 804 MacSync LNCT X1

https://iot-shop.de/web/image/product.template/11870/image_1920?unique=f7b2f22

305.71 € 305.71 EUR 305.71 €

Not Available For Sale

  • Brand
  • variants
  • variants
  • connectivity
  • frequency
  • antenna
  • activation
  • enclosure protection class
  • sensors
  • interfaces
  • interfaces
  • interfaces
  • power supply
  • power supply
  • battery details

This combination does not exist.

Contact Us
SKU
 MMT-805

incl. 19.0% VAT plus Shipping costs

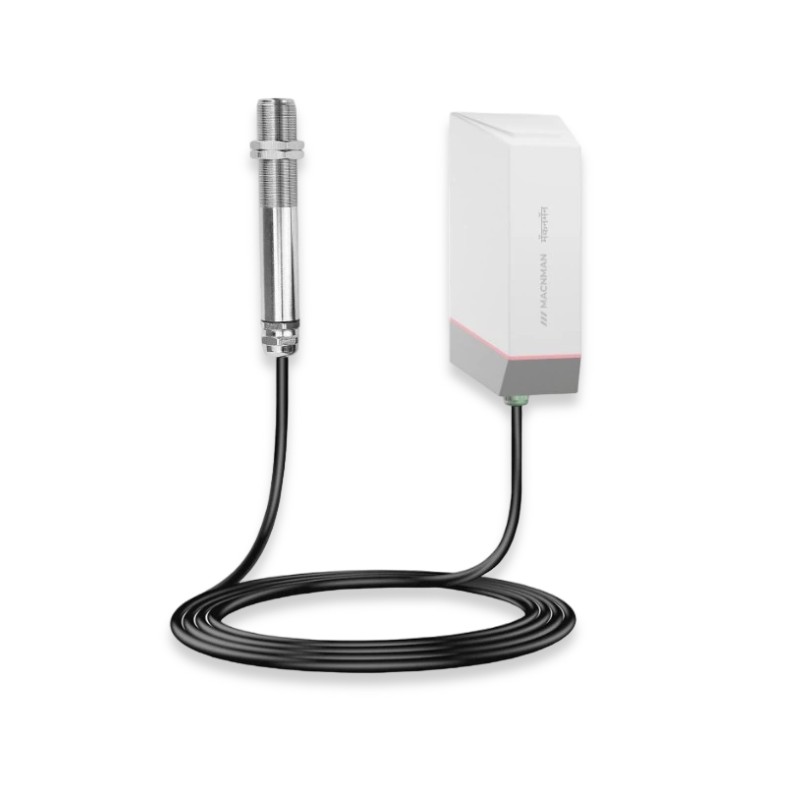

The Macnman MacSync LNCT is an industrial-grade LoRaWAN sensor for non-contact surface temperature measurement on moving, hard-to-reach, or high-temperature objects such as motors, conveyor systems, and process equipment. With ±1% accuracy, 15:1 optical resolution, and a response time of less than 250 ms, it is suitable for early warning of overheating and predictive maintenance. Available in two measurement ranges: X1 for 0–600 °C and X2 for 0–1,500 °C—each with an integrated 19-Ah lithium battery or external power supply. Configuration via BLE using the Macnman Maya app or remotely via downlink. Rugged IP65 housing, 1-meter connection cable, operating temperature up to +80 °C, wall and pole mounting.
Equipment
antenna internal
sensors surface temperature
Communication
connectivity LoRaWAN
frequency EU868
activation OTAA
interfaces Downlink, App, Bluetooth
Power supply
power supply power supply, battery, included, not replaceable
battery details Lithium-Thionylchlorid, nicht aufladbar
General
variants Messbereich: 0-600 °C or Messbereich: 0-1500 °C
variants Batterie or Netzteil
Certifications
enclosure protection class IP65
Others
Brand Macnman
DataSheet_Macnman-LNCT_EN.pdf
Download
How do the three available model variants differ in terms of temperature range and power supply?

The variants are tailored to specific needs: the MMT-804 and MMT-805 both measure 0-600 °C, but the 804 uses external power while the 805 is battery-powered. The MMT-806 is an externally powered model designed for high-temperature environments up to 1500 °C.
What is the expected battery performance for the MMT-805 variant?

The MMT-805 is equipped with a high-capacity 19 Ah Lithium Thionyl Chloride battery, providing an estimated service life of over 7 years when data is transmitted at 60-minute intervals.
What are the ideal applications for the battery-operated model?

The battery-powered variant is specifically designed for remote monitoring, unmanned installations, and deployments where external power sources are unavailable.
What power supply specifications are required for the MMT-804 and MMT-806 models?

These models are designed for continuous monitoring and require an external power supply providing 9 to 36 V DC.
Which variant is recommended for monitoring high-heat processes like furnaces or metal working?

The MMT-806 is the recommended choice for these applications, as it supports an extended measurement range up to 1500 °C.
Does the sensor require physical contact with the machinery or materials it measures?

No, the sensor utilizes non-contact technology, which is ideal for monitoring moving conveyors, industrial machinery, and other sensitive or high-heat surfaces from a distance.
What environmental protection features do the externally powered models offer?

The external power-operated variants are built with an IP65 protection rating, ensuring they are protected against dust and water ingress in industrial settings.
Are there any specific probe requirements for the power-operated versions?

Yes, the externally powered variants (MMT-804 and MMT-806) are only available with an external probe configuration for temperature measurement.
