Skip to Content
Macnman 827 MacSync LC2H4 X1

Price:

379.49 €

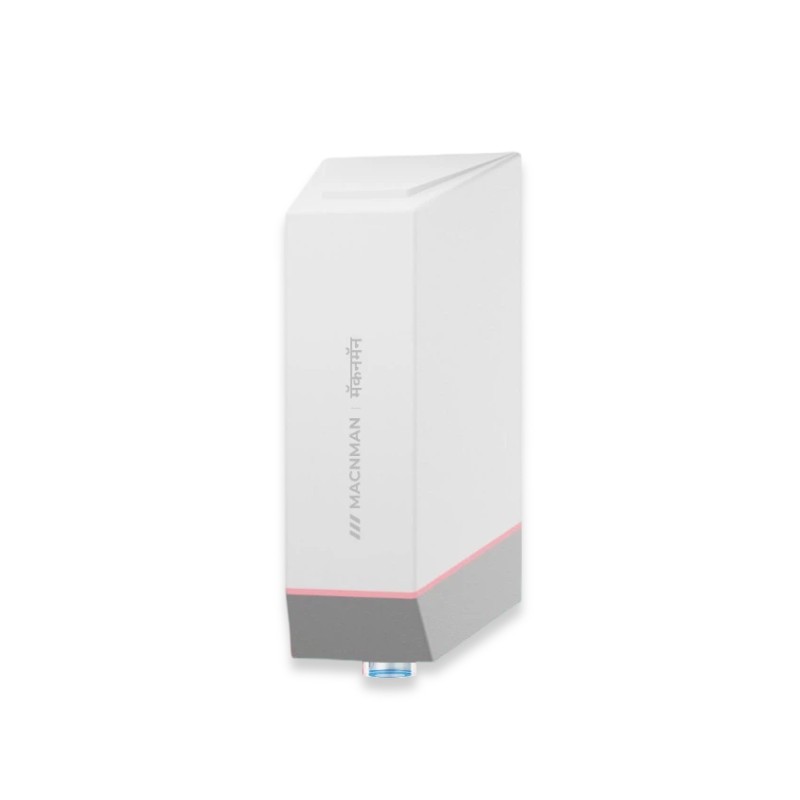

Macnman 827 MacSync LC2H4 X1
  2. Shop
  3. Macnman 827 MacSync LC2H4 X1
New

Macnman 827 MacSync LC2H4 X1

https://iot-shop.de/web/image/product.template/11892/image_1920?unique=070e9fc

379.49 € 379.49 EUR 379.49 €

Not Available For Sale

  • Brand
  • variants
  • sensors
  • connectivity
  • frequency
  • enclosure protection class
  • power supply
  • power supply
  • battery details
  • activation
  • antenna
  • interfaces
  • interfaces

This combination does not exist.

Contact Us
SKU
 MMT-827

incl. 19.0% VAT plus Shipping costs

The Macnman MacSync LC2H4GS X1 is an industrial-grade LoRaWAN sensor designed for continuous, real-time monitoring of ethylene concentrations in cold storage facilities, ripening chambers, food processing plants, and agricultural supply chains. The electrochemical gas sensor detects ethylene in the range of 0–100 ppm with a response time of less than 30 seconds and filters out interference from SOₓ, NOₓ, and H₂S. Available with an integrated 19,000-mAh lithium battery or external power supply. Configuration via BLE using the Macnman Maya app or remotely via downlink; compatible with ChirpStack, TTN, and other network servers. Rugged IP65 housing, operating temperature −40 °C to +80 °C, wall and pole mounting.
Equipment
sensors Ethylen
antenna internal
Communication
connectivity LoRaWAN
frequency EU868
activation OTAA
interfaces App, Bluetooth
Power supply
power supply battery, included, not replaceable, power supply
battery details Lithium-Thionylchlorid, nicht aufladbar
General
variants Batterie or Netzteil
Certifications
enclosure protection class IP65
Others
Brand Macnman
DataSheet_Macman-LC2H4_EN.pdf
Download
What are the primary applications for this ethylene monitoring sensor?

The sensor is designed for industrial-grade monitoring in cold storage, fruit ripening chambers, food processing plants, warehouses, and agricultural settings.
What is the measurement range and sensitivity of the device?

The device features a detection range of 0 to 100 ppm, with a maximum detectable concentration of 200 ppm and a measurement resolution of 0.5 ppm.
How quickly does the sensor respond to changes in gas concentration?

The sensor has a fast response time (T90) of less than 30 seconds and a repeatability of 1% of output.
Is the device suitable for extreme temperature environments?

Yes, the device is designed for extreme conditions, featuring an IP65-rated glass-filled nylon enclosure and an operating temperature range of -40°C to +80°C.
What is the expected lifespan of the sensing unit?

The ethylene sensor has an expected operational life of 3 years when used in air conditions.
What are the power options for the MacSync LC2H4GS X1 variants?

The MacSync LC2H4GS X1 PO variant requires an external 9-36 V DC power source, while the MacSync LC2H4GS X1 BO variant is battery-powered with an integrated 19,000 mAh battery.
How long does the battery last in the MMT-827 model?

The MMT-827 variant's Lithium Thionyl Chloride battery is estimated to last over 4 years based on a 60-minute data reporting interval.
How can I configure the device reporting modes?

The device can be configured via the Macnman Maya Android App to report data in periodic, event-based, or hybrid modes.
