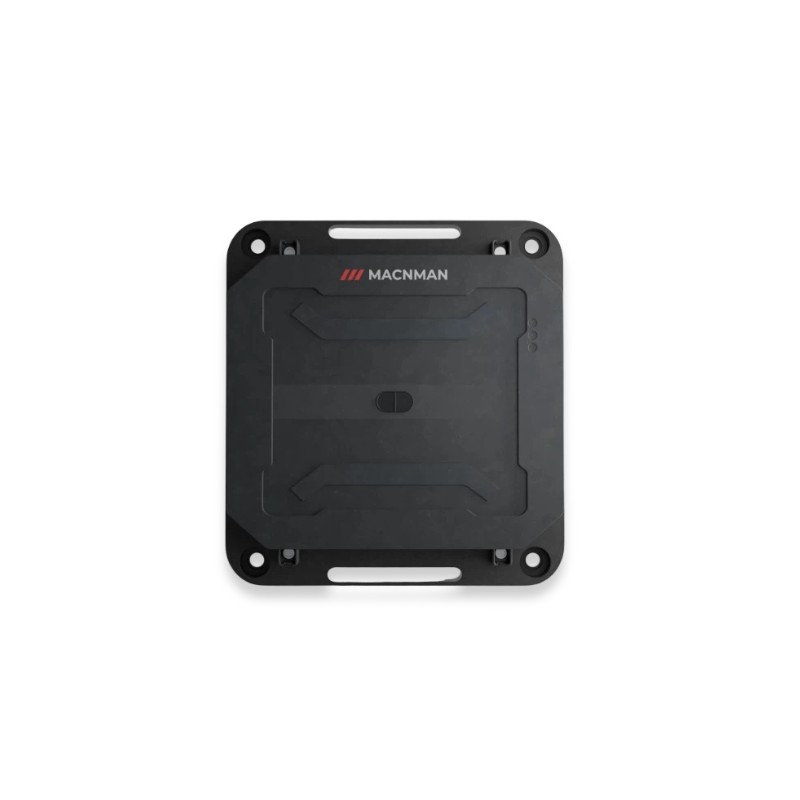

Macnman MacRay LToF X1/X2/X3 LoRaWAN ToF Sensor

Price:

122.45 €
Macnman MacRay LToF X1/X2/X3 LoRaWAN ToF Sensor
  2. Shop
  3. Macnman MacRay LToF X1/X2/X3 LoRaWAN ToF Sensor
New

Macnman MacRay LToF X1/X2/X3 LoRaWAN ToF Sensor

https://iot-shop.de/web/image/product.template/11877/image_1920?unique=09dcb64

122.45 € 122.45 EUR 122.45 €

Not Available For Sale

  • Brand
  • variants
  • variants
  • sensors
  • activation
  • connectivity
  • frequency
  • antenna
  • enclosure protection class
  • interfaces
  • interfaces
  • interfaces
  • power supply
  • battery details

This combination does not exist.

Contact Us
SKU
 MMT-812

incl. 19.0% VAT plus Shipping costs

The Macnman MacRay LToF is an industrial-grade LoRaWAN sensor for precise, non-contact distance, object, and level measurement in the 4–400 cm range, with ±3% accuracy and up to 1 mm resolution. Available in three variants with increasing spatial resolution: X1 with a 2×2 sensor grid, X2 with a 4×4 sensor grid, and X3 with an 8×8 sensor grid—with the denser measurement grid of the X3 variant being particularly well-suited for people counting and demanding automation applications. The X1 and X2 are each available with an integrated 8-Ah lithium battery or an external power supply. Typical applications: smart parking, container level monitoring, occupancy detection, and industrial automation. Configuration via BLE using the Macnman Maya app or remotely via downlink. Rugged IP65 housing, operating temperature −40 °C to +80 °C.
Equipment
sensors ToF
antenna internal
Communication
activation OTAA
connectivity LoRaWAN
frequency EU868
interfaces App, Bluetooth, Downlink
Power supply
power supply battery, included, not replaceable
battery details Lithium-Thionylchlorid, nicht aufladbar
General
variants Batterie or Netzteil
variants 2×2-Sensorgitter or 4×4-Sensorgitter or 8×8-Sensorgitter
Certifications
enclosure protection class IP65
Others
Brand Macnman
DataSheet_Macman-LToF_EN.pdf
Download
What is the measurement range and precision of this sensor?

The sensor provides high-precision non-contact distance and level measurements ranging from 4 cm to 400 cm. It offers a resolution of up to 1 mm with a typical accuracy of +/- 3% and repeatability within +/- 10 mm.
What sensor grid configurations are available for this device?

The device is available in three sensor grid configurations: 2x2, 4x4, and 8x8.
What are the power options for the different device variants?

The MacRay LToF X1 PO and X2 PO variants are externally powered via a 9-36 V DC supply. The MacRay LToF X1 BO and X2 BO models are battery-operated and include an integrated 8 Ah Lithium Battery, which provides a battery life of over 4 years when using a 60-minute reporting interval.
Can this device be used in outdoor or harsh industrial environments?

Yes, the device is designed for durability with an IP65 protection rating and an enclosure made of glass-filled nylon. It operates in temperatures from -40 to +80 degrees Celsius and features ambient light immunity up to 100k Lux, making it suitable for use in direct sunlight.
How can I adjust the sensor settings and field of view?

You can configure the device locally using the Macnman Maya Android App via BLE or remotely through Over-the-Air (OTA) downlink commands. This allows you to adjust the programmable field of view between 26 and 60 degrees and set custom measurement rates up to 60 Hz.
What mounting options are supported for installation?

The device supports both wall-mounted and pole-mounted installations. It has a compact form factor with dimensions of 96 mm x 96 mm x 28 mm and weighs approximately 135 g.
