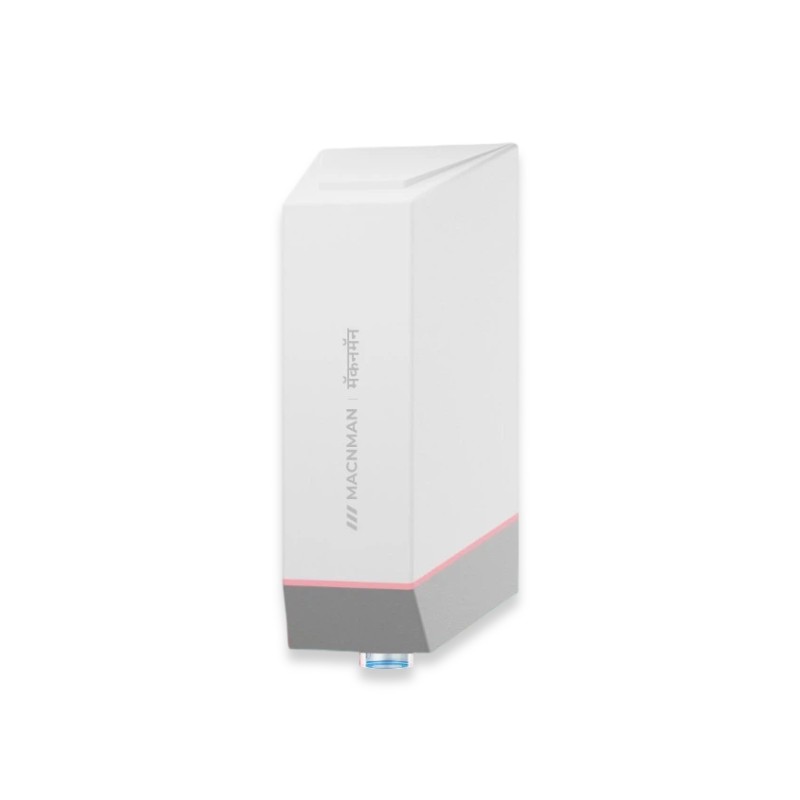

The Macnman MacSync LOXGS X1 is an industrial-grade LoRaWAN sensor designed for continuous, real-time monitoring of oxygen concentrations in industrial facilities, confined spaces, warehouses, medical facilities, and laboratory environments. The highly stable electrochemical O₂ sensor measures concentrations from 0–25% by volume with a response time of less than 15 seconds and configurable threshold alarms for low oxygen levels. Available with an integrated 19,000-mAh lithium battery or an external power supply. Configuration via BLE using the Macnman Maya app or remotely via downlink; compatible with ChirpStack, TTN, and other network servers. Rugged IP65 housing, operating temperature −40 °C to +80 °C, wall and pole mounting.
| Equipment | |
|---|---|
| sensors | Sauerst |
| antenna | internal |
| Communication | |
| connectivity | LoRaWAN |
| frequency | EU868 |
| activation | OTAA |
| interfaces | Bluetooth, App, Downlink |
| Power supply | |
| power supply | power supply, battery, included, not replaceable |
| battery details | Lithium-Thionylchlorid, nicht aufladbar |
| General | |
| variants | Batterie or Netzteil |
| Certifications | |
| enclosure protection class | IP65 |
| Others | |
| Brand | Macnman |
DataSheet_Macnman-LOXOGS_EN.pdf
Download
