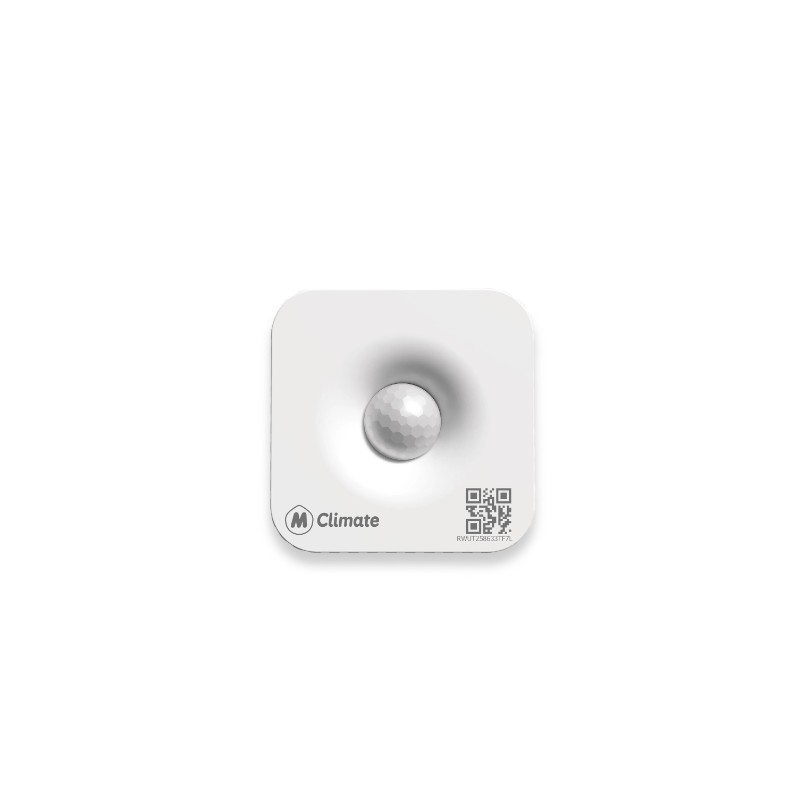

MClimate PIR mini LoRaWAN Environmental Sensor
SKU |
MCL-LW-PIR-MINI-01-BI |
incl. 19.0% VAT plus Shipping costs
The MClimate PIR Mini is a compact, battery-powered LoRaWAN sensor for smart buildings with a battery life of up to 15 years. It simultaneously measures motion/occupancy via PIR, brightness, temperature, and humidity, making it ideal for demand-based ventilation control, occupancy monitoring, and building automation.
| Equipment | |
|---|---|
| sensors | presence / attendance, light, ambient temperature, air humidity |
| antenna | internal |
| Communication | |
| activation | OTAA |
| connectivity | LoRaWAN |
| frequency | EU868 |
| Power supply | |
| power supply | battery, included, replaceable |
| battery details | Lithium-Thionylchlorid, nicht aufladbar |
| number of batteries | 2 |
| Others | |
| Brand | MClimate |
The device is a multi-purpose sensor capable of monitoring motion (PIR), ambient temperature, humidity, and light intensity (lux).
The device is suitable for smart buildings, residential and commercial buildings, and hotels. When used with the Pinpoint cover, it is also ideal for monitoring doorways, entries, corridors, and threshold counting.
The sensor can be installed using screws and dowels, double-sided tape, or an optional anti-theft bracket with a secure screw.
The device is powered by two 1.5VDC AA batteries, providing an expected battery life of up to 15 years with default settings.
The PIR sensor features a wide view angle of 120 degrees on both the horizontal (X) and vertical (Y) axes.
Yes, the device is designed to send messages upon occupancy detection and can also count movements for activity monitoring.
Yes, there are five interchangeable limiter covers available—Half moon, Wedge, Bowtie, Spot, and Pinpoint—to customize the sensor's field of view.
