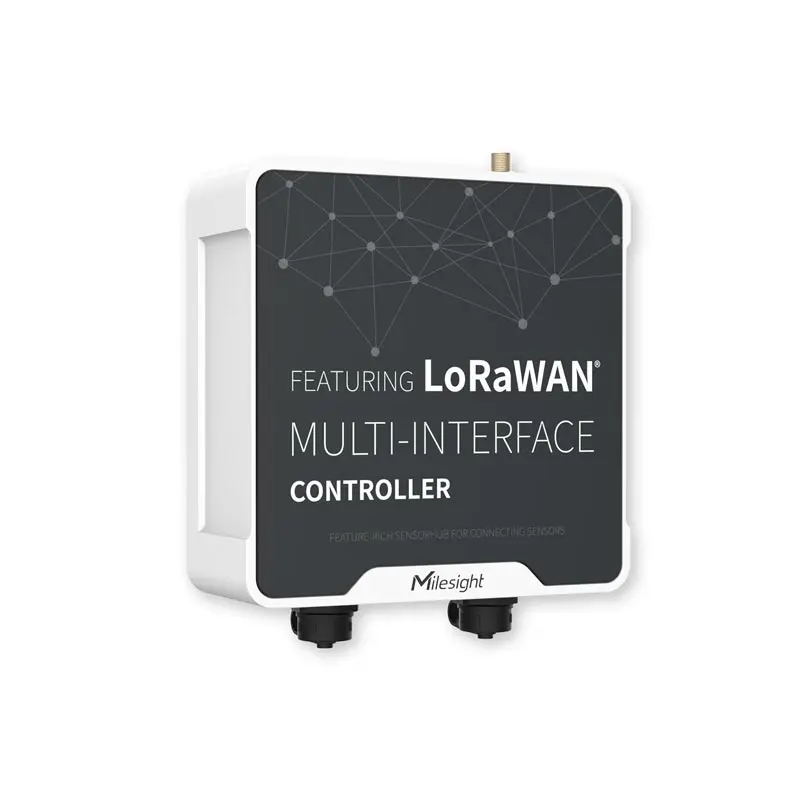

Milesight UC502 Multi-Interface Controller (External Antenna)
SKU |
MIL-UC502-868M-EA |
incl. 19.0% VAT plus Shipping costs
The Milesight UC502 Multi Interface Controller (external antenna) is a LoRaWAN controller designed to collect data from industrial sensors and devices. After initial configuration via an NFC interface or a wired USB connection, the controller enables:
- the simultaneous connection of multiple sensors via analog inputs, serial interfaces, and various digital interfaces
- Local storage of history data to prevent data loss in the event of a wireless network connection failure
- Power supply for connected external sensors via built-in, replaceable rechargeable batteries or a DC input
The controller is a Class A device housed in an IP68-rated enclosure with M12 connectors, making it protected against water and dust. It supports standard communication protocols such as Modbus RTU and SDI-12 for integration into industrial hardware. Typical application scenarios include environmental monitoring and smart agriculture.
| Equipment | |
|---|---|
| antenna | external |
| Communication | |
| connectivity | LoRaWAN |
| interfaces | NFC, App |
| frequency | EU868 |
| activation | OTAA, ABP |
| Power supply | |
| battery details | ER26500, Lithium-Thionylchlorid, nicht aufladbar |
| number of batteries | 3 |
| power supply | battery, included, replaceable |
| Certifications | |
| enclosure protection class | IP68 |
| Others | |
| Brand | Milesight |
The device is equipped with multiple interfaces to support various industrial sensors, including GPIO, RS232, RS485, SDI-12, and two analog inputs that support 4-20mA or 0-10V signals.
Yes, the controller can power external sensors through two 3.3V outputs and two switchable outputs that can be configured for 5V, 9V, or 12V.
The device features a waterproof design with M12 connectors and meets IP67 or IP68 standards, providing robust protection against water and dust in industrial settings.
Configuration can be handled wirelessly via NFC using a mobile application or through a wired connection via the USB Type-C port using the provided software.
The controller supports local storage for up to 600 data records and features a data retransmission mechanism to ensure that any lost information is sent to the server once the connection is restored.
Under optimal line-of-sight conditions, the device can transmit data over distances of up to 15 kilometers.
