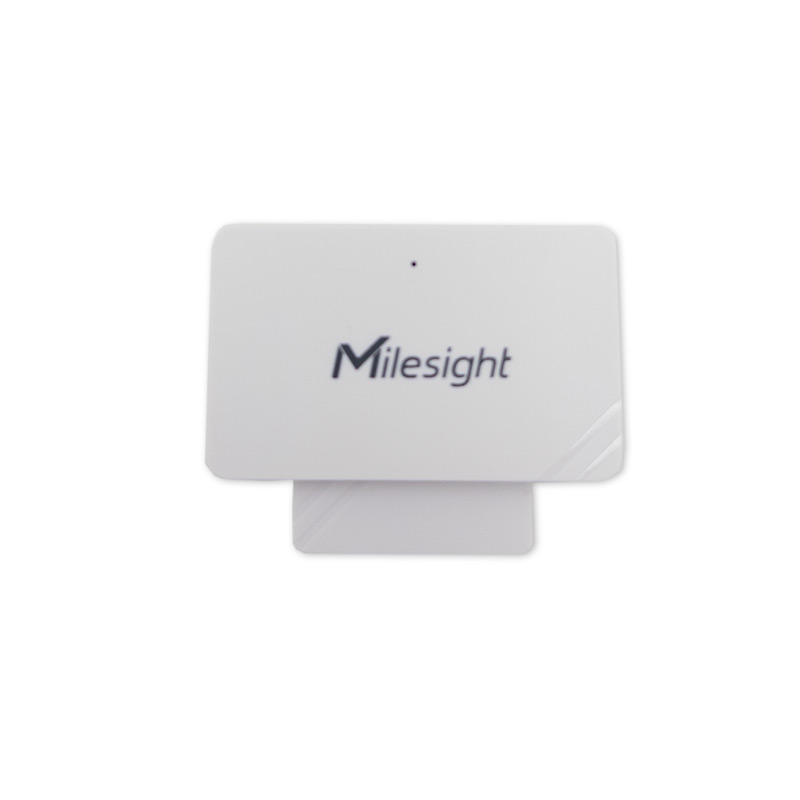

Milesight's LoRaWAN door and window sensor from the CoWork series works with a magnet. It registers whether the magnet is in range of the sensor or not. The included magnet is attached to the door or window and the corresponding sensor is attached to the corresponding frame. The minimalist style and compact size offer the possibility to use the sensor on a large scale in residential and office spaces.
| Equipment | |
|---|---|
| sensor | Öffnungsstatus, Distance |
| Communication | |
| frequency | EU868 |
| connectivity | LoRaWAN |
| Power supply | |
| power supply | battery, included, replaceable |
| battery details | ER14250, Lithium-Thionylchlorid, nicht aufladbar |
| number of batteries | 1 |
| Certifications | |
| enclosure protection class | IP20 |
It is used to detect door/window openings and object movements and is suitable for smart buildings, offices and factories.
The communication range of the WS301 is up to 15 km (line of sight).
You can configure the WS301 via NFC using the mobile app.
The WS301 supports both OTAA and ABP.
You can mount the WS301 using 3M tapes or screws.
Reporting is triggered by the reporting interval, changes in magnet status, or changes in tamper status.
It reports battery level (%), magnet status (Close/Open), and tamper status (Installed/Un-installed).
