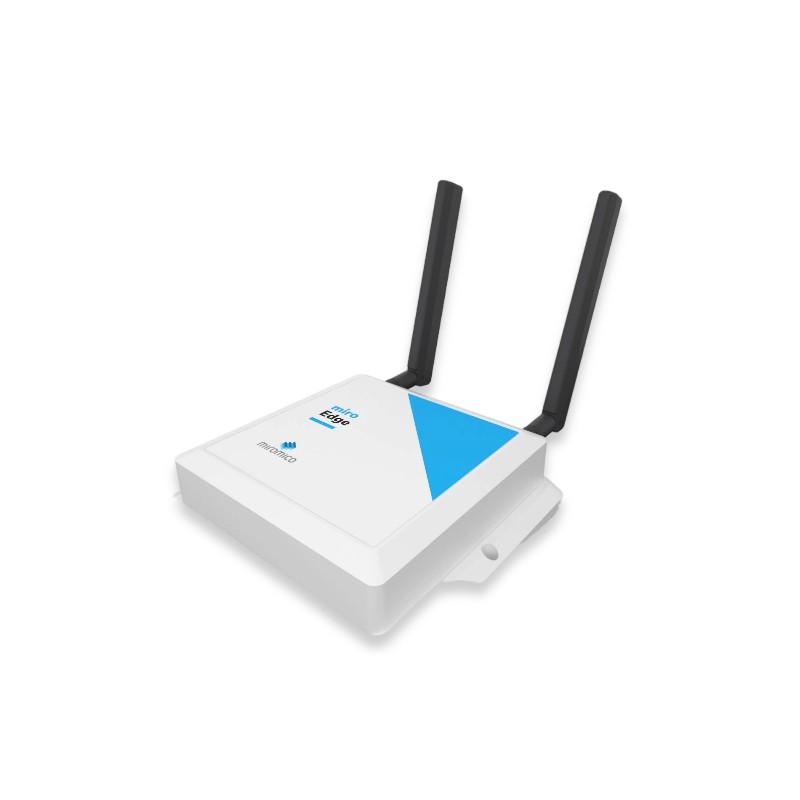

The miro Edge Indoor mioty® is a modular, cost-effective family of indoor gateways for industrial IoT applications in the 868 MHz ISM band. Thanks to mioty® compatibility, optional LTE, Ethernet, and Power over Ethernet (PoE), as well as Mini-PCIe expansions, the system can be flexibly integrated into existing infrastructures. The OpenWRT-based Linux platform enables easy configuration, remote management, FUOTA updates, and real-time monitoring. Typical applications include smart metering, Industry 4.0, smart buildings, healthcare, and logistics. With its compact design, high reception performance, and robust wireless technology, the gateway offers a reliable, scalable, and future-proof solution for modern indoor IoT networks.
| Equipment | |
|---|---|
| antenna | external |
| Communication | |
| gateway-backhaul | 3G, 4G/LTE, ethernet, Wi-Fi |
| connectivity | Mioty |
| interfaces | Ethernet, WLAN |
| frequency | EU868 |
| Power supply | |
| power supply | USB, PoE |
| General | |
| variants | ohne PoE or PoE-Splitter |
| variants | ohne 4G or 4G/LTE |
| Certifications | |
| enclosure protection class | IP41 |
| Others | |
| Brand | Miromico |
