Macnman MacSync LH2S X1 LoRaWAN Hydrogen Sulfide Sensor

Price:

308.09 €
Macnman MacSync LH2S X1 LoRaWAN Hydrogen Sulfide Sensor
  2. Shop
  3. Macnman MacSync LH2S X1 LoRaWAN Hydrogen Sulfide Sensor
New

Macnman MacSync LH2S X1 LoRaWAN Hydrogen Sulfide Sensor

https://iot-shop.de/web/image/product.template/11884/image_1920?unique=ff1e08b

308.09 € 308.09 EUR 308.09 €

Not Available For Sale

  • Brand
  • sensors
  • connectivity
  • frequency
  • activation
  • enclosure protection class
  • power supply
  • battery details
  • interfaces
  • interfaces
  • interfaces
  • antenna

This combination does not exist.

Contact Us
SKU
 MMT-819

incl. 19.0% VAT plus Shipping costs

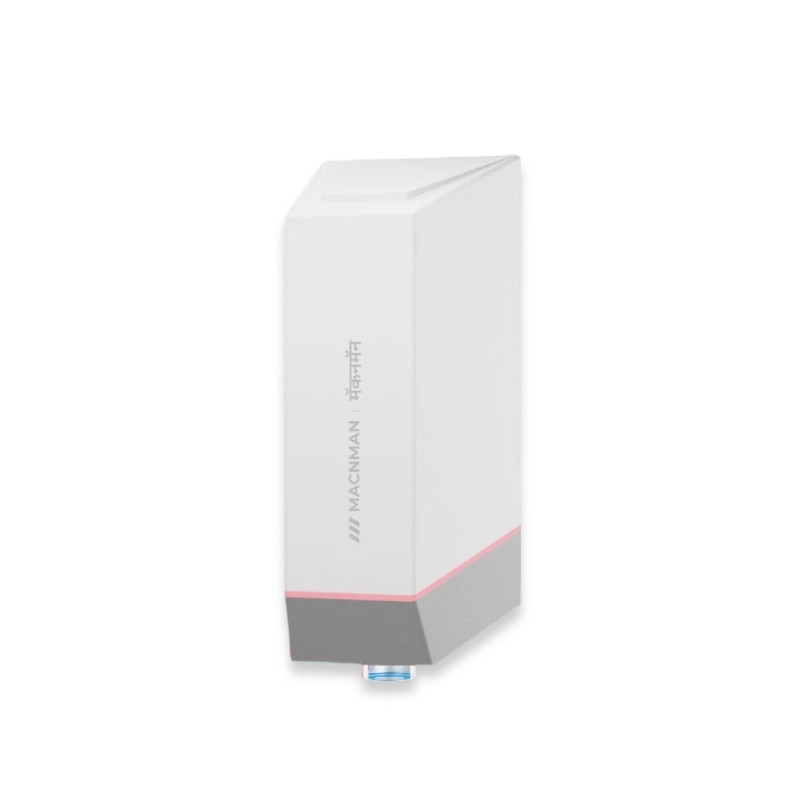

The Macnman MacSync L H2S X1 is an industrial-grade LoRaWAN sensor for continuous, real-time monitoring of hydrogen sulfide (H₂S) in wastewater treatment plants, sewer systems, landfills, and chemical production facilities. The electrochemical MEMS gas sensor measures H₂S concentrations from 0–100 ppm with a resolution of 0.1 ppm and features configurable threshold alarms for rapid response when limits are exceeded. Available with an integrated 19-Ah lithium battery or external power supply. Configuration via BLE using the Macnman Maya app or remotely via downlink; compatible with ChirpStack, TTN, Netmore, and other network servers. Rugged IP65 housing, wall and pole mounting.
Equipment
sensors H2S (hydrogen sulphide)
antenna internal
Communication
connectivity LoRaWAN
frequency EU868
activation OTAA
interfaces App, Bluetooth, Downlink
Power supply
power supply battery, included, not replaceable
battery details Lithium-Thionylchlorid, nicht aufladbar
Certifications
enclosure protection class IP65
Others
Brand Macnman
DataSheet_Macman-LH2S_EN.pdf
Download
What are the primary applications for this H2S gas sensor?

The device is designed for continuous real-time monitoring of Hydrogen Sulfide emissions in environments such as Sewage Treatment Plants (STP), Wastewater Treatment Plants (WWTP), sewage systems, industrial plants, landfills, and chemical processing facilities.
What is the measurement range and accuracy of the hydrogen sulfide detection?

The sensor features a measurement range of 0 to 100 ppm with a resolution of 0.1 ppm. It can handle a maximum detectable concentration of 500 ppm and maintains a repeatability of less than 2% of the output value.
How long is the sensor expected to last and does it require calibration?

The sensor has an expected life of 2 years in air and comes factory calibrated to ensure accuracy from the point of deployment.
How can I configure the device settings?

The device supports local configuration via the Macnman Maya Android App using BLE, as well as remote Over-the-Air (OTA) configuration via downlink commands.
What data reporting modes are available for monitoring?

Users can choose between Periodic, Event-based, or Hybrid reporting modes. The device also supports configurable threshold-based alerts to enable faster incident response through real-time data transmission.
Is the device built to withstand harsh outdoor environments?

Yes, the sensor is housed in a glass-filled nylon enclosure with an IP65 protection rating. It is designed to operate in temperatures ranging from -40 C to +65 C and humidity levels up to 95% RH.
What mounting options are available for installation?

The device is versatile for various site requirements, supporting both wall mounting and pole mounting installations.
