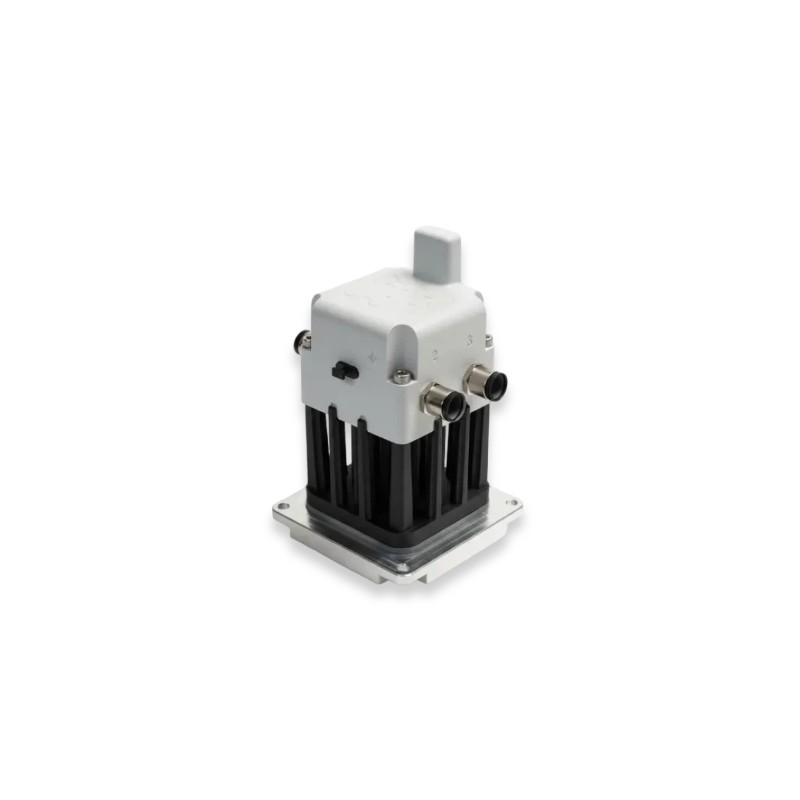

The MOIZ Harvestree sensor node is an innovative, battery-free solution for industrial data collection. By generating thermal energy from temperature differences, the device operates completely maintenance-free and enables reliable wireless data transmission via LoRaWAN. Thanks to its IP68-rated, rugged industrial housing, the sensor is ideally suited for extreme environments such as steel mills, railroad tracks, power plants, or the process industry. The Harvestree supports up to four external sensors for temperature, vibration, or analog signals and enables precise real-time condition monitoring. Typical applications include predictive maintenance, transformer monitoring, pump and machine condition analysis, and energy optimization in industrial facilities—all without the need for battery replacement or maintenance.
Other versions are available upon request.
| Equipment | |
|---|---|
| sensors | analog input |
| antenna | internal |
| Communication | |
| connectivity | LoRaWAN |
| frequency | EU868 |
| Power supply | |
| power supply | Energy harvesting |
| General | |
| variants | 4 Kühlrippen or without a thermal spacer |
| variants | Atex: Nein |
| Certifications | |
| enclosure protection class | IP68, IK07 |
| Others | |
| Brand | MOIZ |
DataSheet_MOIZ-Harvestree_En.pdf
Download
