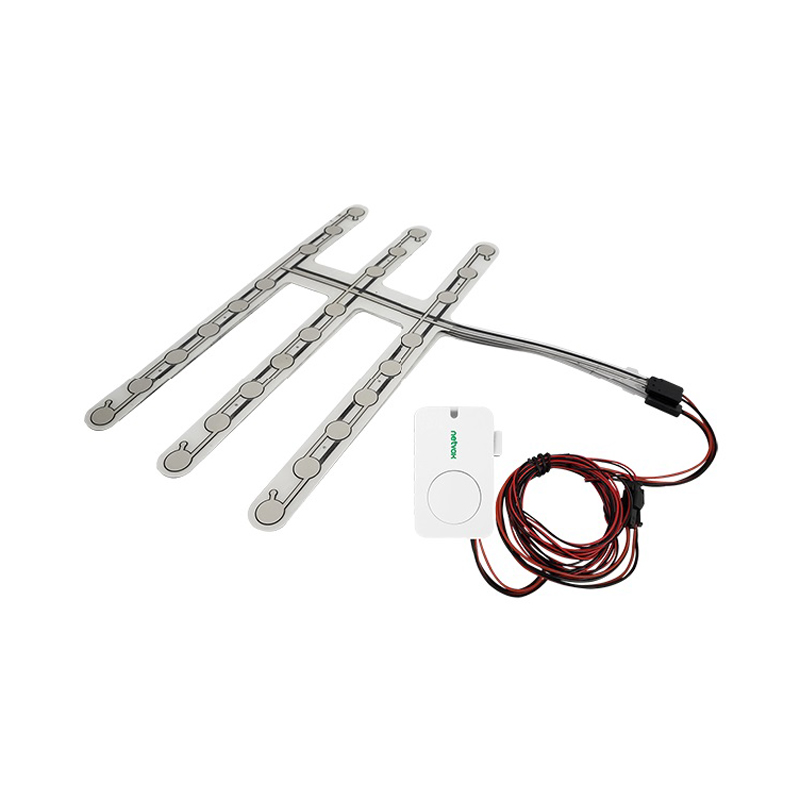

Netvox R313WA LoRaWAN Wireless 2-Gang Seat Occupancy Sensor
SKU :
NV-R313WAexcl. 19% VAT plus Shipping costs
The R313WA ivon Netvox is a sensor that detects presence in a seat and is compatible with the LoRaWAN protocol. It sends a message to the gateway when the seat is occupied and another when the seat is empty again. The R313WA uses two 3.0V CR2450 button cell batteries and the SX1276 wireless communication module. It is compatible with LoRaWAN Class A and uses frequency hopping technology. It is characterized by low power consumption and long battery life, which depends on the frequency of sensor reporting. Applications include seat detection in theaters, conference halls, large classrooms and stadiums.
| Equipment | |
|---|---|
| Antenna | Internal |
| Sensor | Pressure, Weight |
| Colour | white |
| Material | Plastic |
| Communication | |
| Frequency | EU868 |
| Connectivity | LoRaWAN |
| Power supply | |
| Power supply | Battery |
| Power supply details | CR2450 |
| Number of power supplies | 2 |
| Certifications | |
| Certifications | IP30 |
| Weights / dimensions | |
| Dimensions | 57 x 38,05 x 15,2 mm |
