RAK WisMesh Repeater Solar-Powered Meshtastic Repeater

Price:

355.69 €
RAK WisMesh Repeater Solar-Powered Meshtastic Repeater
  2. Shop
  3. RAK WisMesh Repeater Solar-Powered Meshtastic Repeater
New

RAK WisMesh Repeater Solar-Powered Meshtastic Repeater

https://iot-shop.de/web/image/product.template/11856/image_1920?unique=1929555

355.69 € 355.69 EUR 355.69 €

Not Available For Sale

  • Brand
  • connectivity
  • power supply
  • enclosure protection class
  • antenna
  • battery details

This combination does not exist.

Contact Us
SKU
 RAK-10721

incl. 19.0% VAT plus Shipping costs

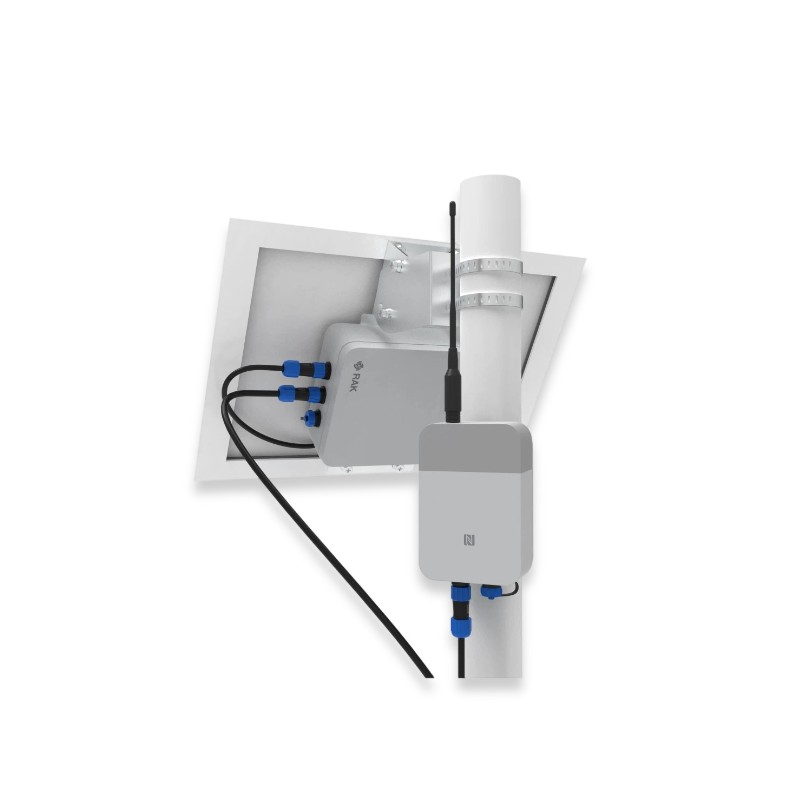

The RAK WisMesh Repeater is a plug-and-play, solar-powered Meshtastic repeater designed to reliably extend LoRa mesh networks in remote or off-grid environments. Equipped with the Semtech SX1262 LoRa transceiver and pre-installed Meshtastic firmware, it is ready for immediate use—without the need for your own infrastructure or a power connection. The Solar Battery Lite (5.2 Ah, 10.8 V), combined with the 10-W solar panel, enables continuous outdoor operation. The IP67-rated housing withstands harsh environmental conditions, and wall and pole mounting hardware is included. The 5–16 V DC input range also allows operation with a separate power supply.
Equipment
antenna external
Communication
connectivity Meshtastic
Power supply
power supply Solar
battery details Li-Ion
Certifications
enclosure protection class IP67
Others
Brand RAKwireless
QuickStartGuide_RAK-WisMeshRepeater_EN.pdf
Download
UserManual_RAK-WisMeshRepeater_EN.pdf
Download
What is the primary purpose of this repeater?

The WisMesh Repeater is a ready-to-use solar-powered device designed to enlarge the range of a Meshtastic network, specifically for outdoor and off-grid LoRa mesh networking.
How can the device be powered?

The repeater supports multiple power options, including Solar Battery Powered (via Solar Battery Lite) or DC Powered through an SP11 connector.
What are the mounting options and requirements?

The device can be wall-mounted using screws or pole-mounted with the included clamp and bracket. It is critical to follow the 'UP' direction marked on the bracket during installation.
How do I complete the initial setup and configuration?

The device will not function until the region is set via the Meshtastic App. You can configure it using a mobile phone via a BLE connection (pairing pin 123456) or via a USB connection using a Web Client or Python CLI.
Are there any safety warnings regarding the power supply?

Yes, you must not connect a DC adapter if 18505 batteries are installed inside the device. Additionally, the enclosure must be kept closed at all times to maintain its waterproof rating.
Where can I find the USB port and the hardware reset button?

The USB port and the physical reset button are located inside the device, situated within the unused battery cabinet behind the battery lid.
Does the device require any assembly or antenna installation?

The device is largely pre-assembled, but the included LoRa antenna must be installed manually before use. To do this, remove the rubber cap and securely screw the LoRa antenna onto the device.
