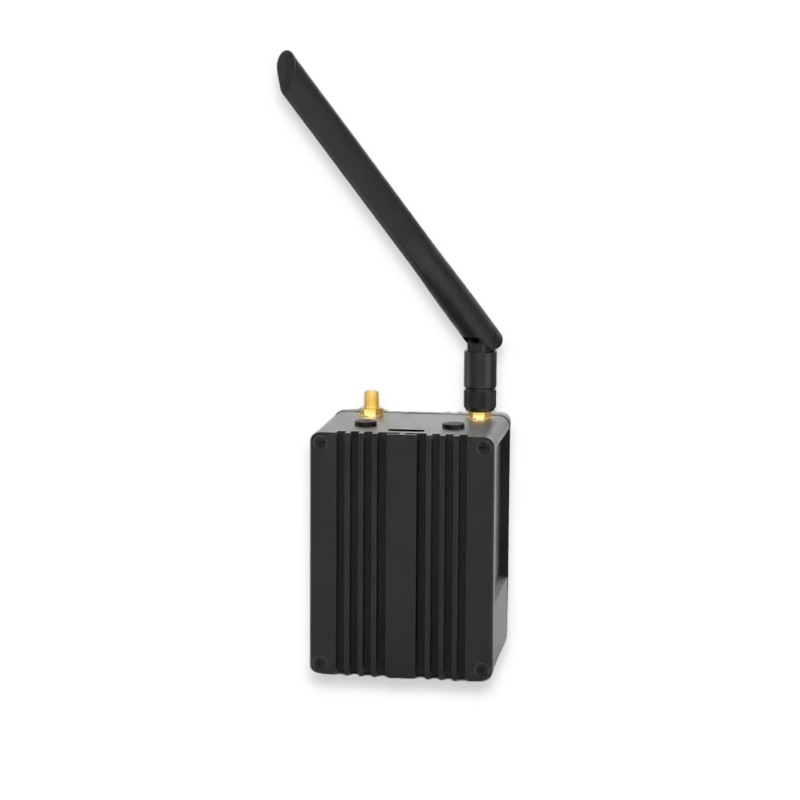

RAK WisMesh Station HP Stationary Meshtastic Node
SKU |
RAK-115267 |
incl. 19.0% VAT plus Shipping costs
The RAK WisMesh Station High Power is a high-performance, stationary Meshtastic platform based on the Raspberry Pi 4B (2 GB RAM). The RAK13302 LoRa transceiver with SKY66122 booster delivers up to 30 dBm transmit power (1 W) for maximum range in the Meshtastic mesh network. The integrated RAK12501 GNSS module enables precise location tracking, and thanks to the Raspberry Pi, Meshtastic data can be integrated into cloud platforms such as ThingsBoard or Grafana via MQTT. Typical applications include stationary relay nodes on masts or buildings, emergency communication without a cellular network, and the deployment of regional, decentralized IoT sensor networks. Power supply: 5 V/≥3 A; metal housing (92 × 68.3 × 57.5 mm); operating temperature: −10 °C to +55 °C.
| Equipment | |
|---|---|
| antenna | external |
| sensors | position |
| Communication | |
| connectivity | Meshtastic, Ethernet |
| Power supply | |
| power supply | power supply |
| Others | |
| Brand | RAKwireless |
Meshtastic - WisMesh Station Datasheet Raspberry Pi Meshtastic Gateway.pdf
Download
