RAK WisMesh TAPV2 Meshtastic Node

Price:

129.59 €
RAK WisMesh TAPV2 Meshtastic Node
  2. Shop
  3. RAK WisMesh TAPV2 Meshtastic Node
New

RAK WisMesh TAPV2 Meshtastic Node

https://iot-shop.de/web/image/product.template/11861/image_1920?unique=0745088

129.59 € 129.59 EUR 129.59 €

Not Available For Sale

  • Brand
  • connectivity
  • frequency
  • sensors
  • interfaces
  • enclosure protection class
  • power supply
  • battery details

This combination does not exist.

Contact Us
SKU
 RAK-205024

incl. 19.0% VAT plus Shipping costs

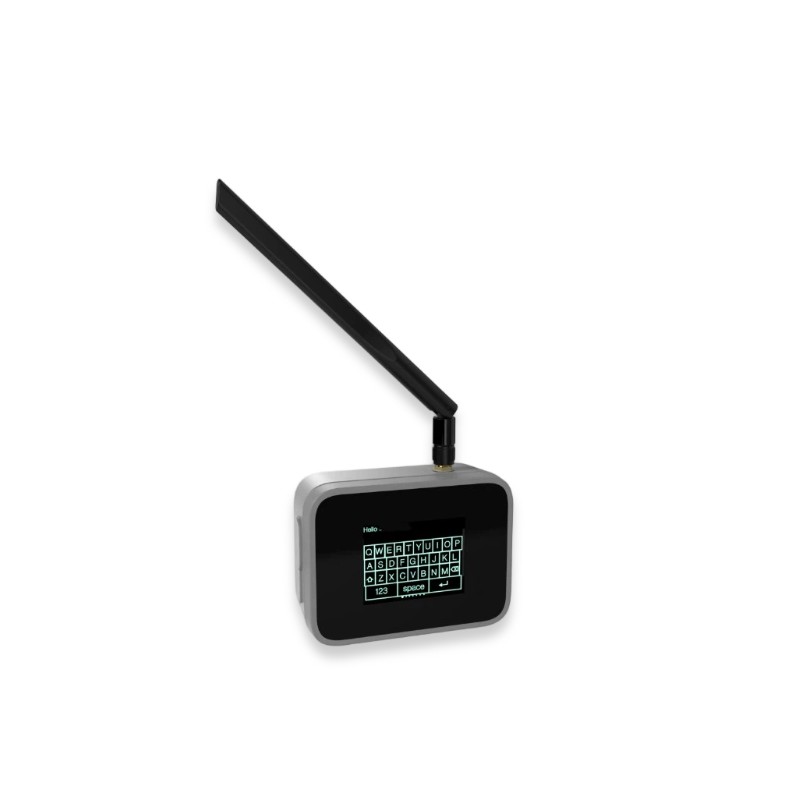

The RAK WisMesh TAP V2 is a fully standalone Meshtastic communicator designed for outdoor use, based on the Espressif ESP32-S3 (RAK3312 module) with a Semtech SX1262 LoRa transceiver. The TFT touchscreen, featuring an integrated on-screen keyboard and the new Meshtastic UI (MUI), allows you to send and receive messages directly on the device without a phone. An SD card for offline map display and a buzzer for incoming messages round out the package. The integrated GNSS module shares location data via the mesh network, and the 3,200-mAh battery is charged via USB-C. IP65-rated housing, operating temperature range of −20 °C to +60 °C, configuration via Bluetooth app or USB.
Equipment
sensors position
Communication
connectivity Meshtastic
frequency EU868
interfaces Bluetooth
Power supply
power supply battery, included, not replaceable
battery details Li-Ion
Certifications
enclosure protection class IP65
Others
Brand RAKwireless
Meshtastic - Meshtastic WisMesh TAP Quick Start Guide.pdf
Download
What are the primary features of this device?

This is an all-in-one Meshtastic node that includes an on-screen keyboard for messaging without a mobile phone and an integrated GNSS location chip.
What type of display and input does it feature?

The unit uses a 320x240 TFT touchscreen. Users can interact with the device through touch gestures and a virtual on-screen keyboard.
How is the device powered and charged?

It is powered by an internal Li-Ion battery that can be charged via a USB-C connector. The device supports a 5 V supply, making it compatible with solar panel setups.
Does the device include built-in location tracking?

Yes, it features an integrated GNSS location chip and an internal GNSS antenna for tracking and sharing position data.
What antenna connections are available?

The device features an RP-SMA connector for an external LoRa antenna. The BLE and GNSS antennas are integrated internally within the enclosure.
How do I navigate the screens and send messages?

Navigate between screens by swiping left or right. To send a message, swipe up, double-tap 'Broadcast' or select a preset receiver, type your message, and press the RETURN key on the screen.
Is there a specific firmware required for the touchscreen and display?

The device comes pre-flashed with Meshtastic firmware. If you need to update or re-flash the hardware, use the specific firmware version ending in .uf2 designed to support the TFT display and touch interface.
