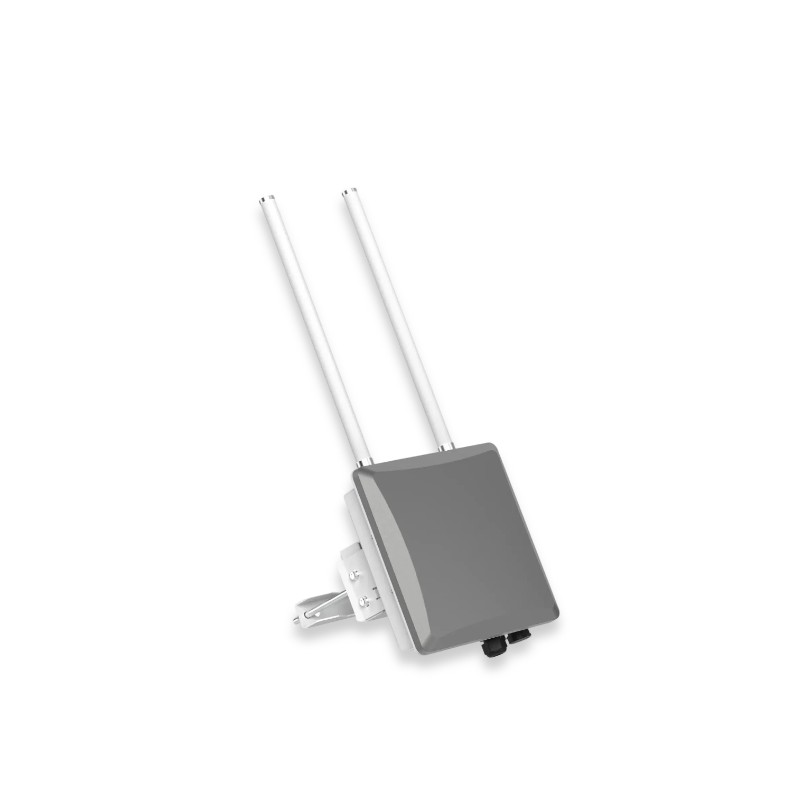

RAK 7393 WisGate Mioty Outdoor Gateway with LoRa
SKU |
RAK-715224 |
incl. 19.0% VAT plus Shipping costs
The RAK7393 WisGate Mioty Outdoor Gateway with LoRa is a weatherproof, highly flexible LoRaWAN and Mioty gateway designed for outdoor use, based on the Raspberry Pi CM4/CM5. It supports up to two separate radio modules, such as a 16-channel sub-GHz LoRaWAN and a 2.4 GHz LoRaWAN channel, or multi-protocol combinations. The device offers DC and PoE power supply, continuously monitors the power supply, and features ultracapacitors for emergency power functions. Its IP67/NEMA-6 enclosure protects against the elements, while mPCIe slots, USB 2.0, Ethernet, RTC, GPS, and an ATECC608 security chip provide versatile interfaces and security. With RAKPiOS and pre-installed Docker, IoT services can be run directly on the gateway.
| Equipment | |
|---|---|
| antenna | external |
| LoRaWAN Channel | 16 |
| Communication | |
| frequency | EU868 |
| gateway-backhaul | ethernet, 4G/LTE, Wi-Fi |
| connectivity | LoRaWAN, Mioty |
| interfaces | USB |
| Power supply | |
| battery details | CR2032 |
| number of batteries | 1 |
| power supply | PoE, power supply |
| General | |
| variants | Ethernet, Wi-Fi or Ethernet, 4G/LTE |
| Certifications | |
| enclosure protection class | NEMA-6, IP67 |
| Others | |
| Marke2 | RAKwireless |
DataSheet_RAK-7393_EN.pdf
Download
