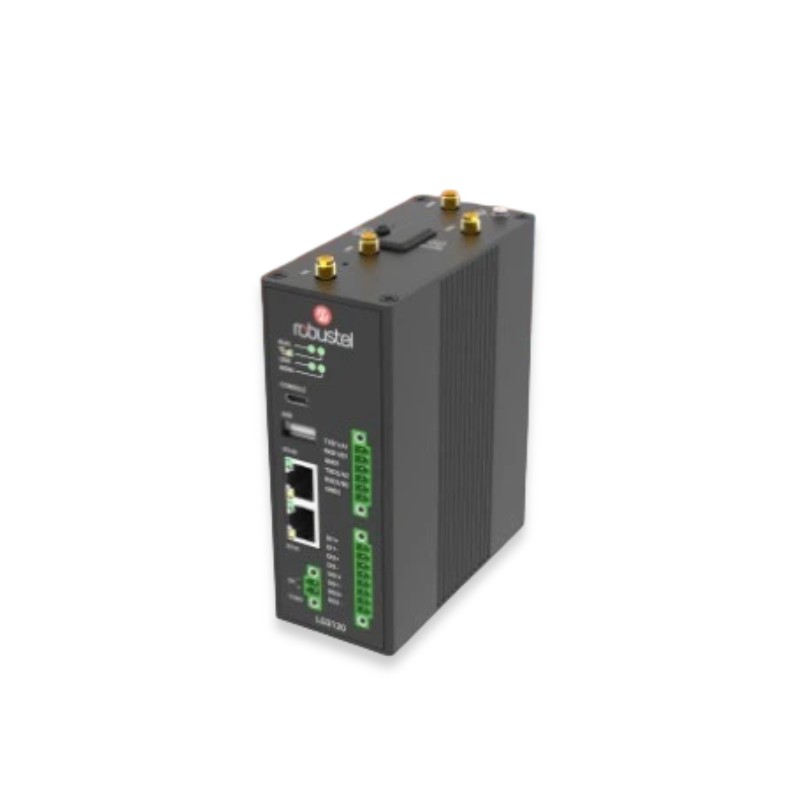

Robustel A015800002 LG3120e-ABJAA-4L-A35GL Industrial Edge LoRaWAN Gateway

Price:

515.15 €
Robustel A015800002 LG3120e-ABJAA-4L-A35GL Industrial Edge LoRaWAN Gateway
  2. Shop
  3. Robustel A015800002 LG3120e-ABJAA-4L-A35GL Industrial Edge LoRaWAN Gateway
New

Robustel A015800002 LG3120e-ABJAA-4L-A35GL Industrial Edge LoRaWAN Gateway

https://iot-shop.de/web/image/product.template/11646/image_1920?unique=2aaba32

515.15 € 515.15 EUR 515.15 €

Not Available For Sale

  • Brand
  • connectivity
  • frequency
  • gateway-backhaul
  • connectivity
  • connectivity
  • antenna
  • gateway-backhaul
  • enclosure protection class
  • power supply
  • connectivity
  • connectivity
  • connectivity
  • connectivity

This combination does not exist.

Contact Us
SKU
 RBL-A015800002

incl. 19.0% VAT plus Shipping costs

The Robustel LG3120e is a high-performance industrial edge gateway for the EU868 frequency band that combines LoRaWAN connectivity with server-grade edge computing. The quad-core processor with 2 GB of RAM enables local data processing directly in the field without relying on the cloud. The integrated LoRaWAN network server automatically recognizes over 300 sensor types via plug-and-play, while the E2C Field Suite normalizes field data from LoRaWAN, Modbus, OPC UA, and BACnet for edge and cloud integration. Two RS-232/485 ports, digital inputs and outputs, and dual-band Wi-Fi reduce the need for external I/O hardware. Management via the free RCMS cloud platform with OTA updates. Included in the package: gateway, 2 cellular antennas, 1 Wi-Fi antenna, 1 LoRa antenna, power supply, and wall-mounting kit. Metal housing, supply voltage 9–36 V DC, operating temperature −25 °C to +70 °C, DIN rail mounting, IP30, CE/UKCA certified.
Equipment
antenna external
Communication
connectivity LoRaWAN, Modbus, BACnet, RS485, RS232, Digitaleingang, Digitalausgang
frequency EU868
gateway-backhaul Wi-Fi, 4G/LTE
Power supply
power supply power supply
Certifications
enclosure protection class IP30
Others
Brand Robustel
DataSheet_robustel-LG3120e_EN.pdf
Download
What are the primary applications for this industrial gateway?

The gateway is designed for high-performance remote field deployments, supporting tasks such as last mile connectivity, zero-touch sensor onboarding, integrated LoRaWAN Network Server (LNS) functionality, and industrial asset monitoring.
What hardware specifications drive the edge computing performance?

The device is equipped with a quad-core ARM Cortex-A53 processor running at 2.0 GHz, 2 GB of LPDDR4 RAM, and 8 GB of eMMC flash storage.
What software environment is available for custom application development?

The gateway runs RobustOS Pro, which is based on Debian 11 Bullseye, and supports various programming languages including Python, Java, Node.js, C, and C++.
What physical connectivity options are available for local equipment?

It features two 10/100 Mbps Ethernet ports (configurable as LAN or WAN), two software-configurable RS-232/485 serial ports, two digital inputs, and two digital outputs.
What cellular and SIM options does the device provide?

The gateway includes one Mini SIM (2FF) slot and one eSIM (MFF2) that is GSMA SGP.22 compliant, supporting 4G LTE, 3G, and 2G connectivity.
Can the internal storage be expanded for data logging?

Yes, the device is equipped with a microSD slot that supports storage expansion up to 2 TB.
What are the power requirements and environmental operating conditions?

The gateway accepts an input voltage of 9 to 36 VDC and is built to operate in temperatures ranging from -25 to +70 degrees Celsius within an IP30-rated metal housing.
What is included in the package for the EU region model?

The package contains the gateway unit, a wall mounting kit, a power adapter, and the required antennas.
