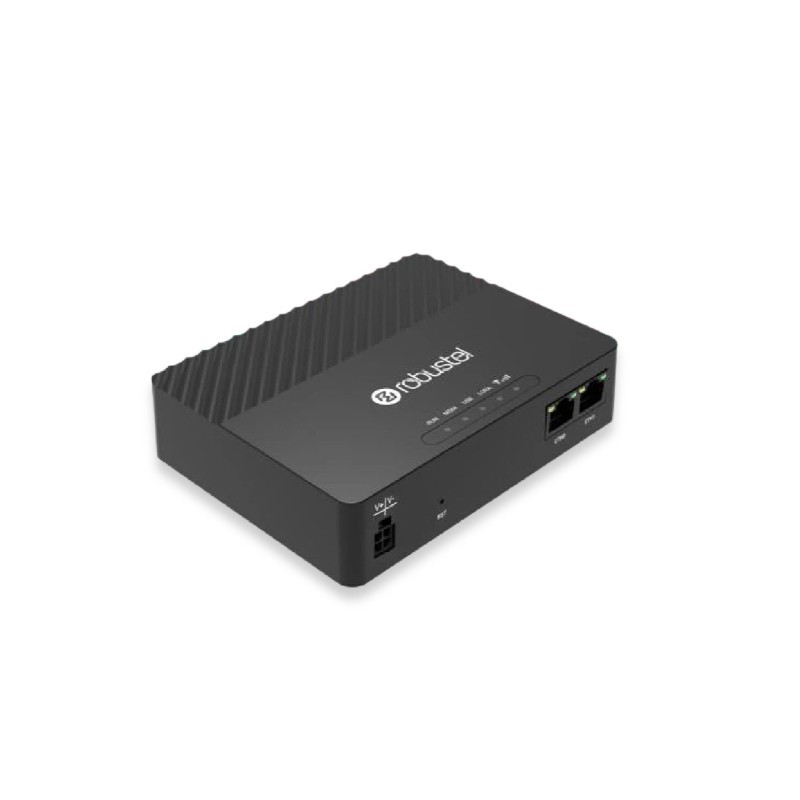

Ronustel R1320LGe-AA-4L-A12EU Industrial LoRaWAN Gateway
SKU |
RBL-A015900001 |
incl. 19.0% VAT plus Shipping costs
The R1320LGe industrial LoRaWAN gateway collects data from end devices and forwards it to the ChirpStack management platform. Once installed, it connects field devices to the network backhaul and central operational monitoring systems.
- Supports device management and remote maintenance tasks.
- Uses 4G LTE Cat 4, Fast Ethernet, or Wi-Fi uplinks for on-site use.
- Supports RCMS remote monitoring, VPN access, and OTA updates for maintenance and troubleshooting teams.
The gateway runs on RobustOS and features a 580-MHz MIPS CPU, 128 MB of RAM, 32 MB of flash memory, a mini-SIM card, and an eSIM. It supports IEEE 802.3at PoE-PD, has an IP30 protection rating, and can be mounted on a wall or DIN rail; it also operates at temperatures ranging from -20 to +70 °C. It is suitable for smart meters, urban infrastructure, and building monitoring.
| Equipment | |
|---|---|
| antenna | internal |
| LoRaWAN Channel | 8 |
| Communication | |
| connectivity | LoRaWAN |
| frequency | EU868 |
| gateway-backhaul | ethernet, 4G/LTE, Wi-Fi |
| Power supply | |
| power supply | PoE, power supply |
| Certifications | |
| enclosure protection class | IP30 |
| Others | |
| Brand | Robustel |
The device is a compact LoRaWAN gateway designed to collect data from downstream end devices and forward it to servers like ChirpStack using LTE, Ethernet, or Wi-Fi connectivity.
The gateway is suitable for various applications including Smart Utilities, Smart Cities, Municipal IoT, Smart Buildings, Property Management, and automated Meter Reading.
The device is equipped with one Mini SIM slot and one eSIM (MFF2) that is GSMA SGP.22 compliant, supporting up to 8 profiles.
Yes, the gateway supports IEEE 802.3at PD on the ETH0 port, allowing it to be powered via Ethernet in addition to the standard 12/24 VDC input.
The gateway has the capacity to receive data from up to 8 LoRa channels at the same time.
The gateway is designed for flexible installation and can be used on a desktop, wall-mounted, or attached to a 35 mm DIN rail.
Designed for industrial environments, the device can operate in temperatures ranging from -20 to +70 °C.
