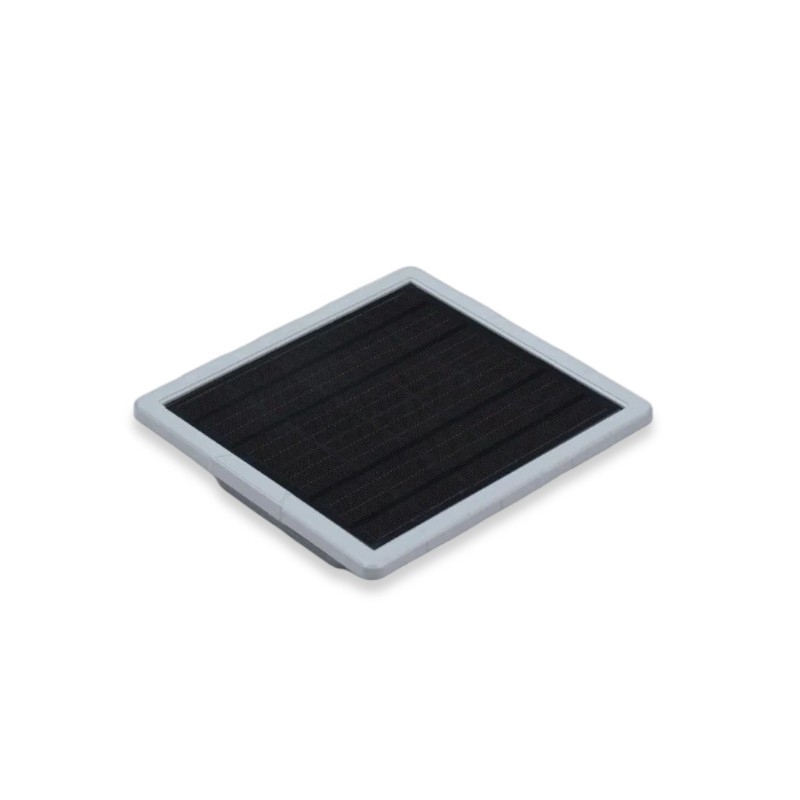

The SenseCAP Solar Node P1 is a cost-effective, solar-powered Meshtastic node designed for long-term outdoor use. The integrated 5-W solar panel powers the device off-grid, while the Semtech SX1262 LoRa transceiver enables ranges of 8–9 km in open terrain—ideal as a network node or repeater for expanding existing mesh networks. Sensors such as temperature, humidity, or light sensors can be connected via the Grove interface using plug-and-play. A GPS module and 18650 rechargeable batteries can be retrofitted by the user. Meshtastic firmware comes pre-installed, and wall or pole mounting is possible using the included mounting kit.
Equipment
antenna external
Communication
connectivity Meshtastic
frequency EU868
Power supply
power supply Solar, USB, battery, not included, replaceable
Others
Brand Seeed Technology
DataSheet_SenseCAP-P1_EN.pdf
Download
What are the primary applications for this outdoor node?

The node is suitable for outdoor adventures, mesh network expansion, environmental monitoring, and educational experiments.
What is the maximum communication range of the device?

It supports a transmission range of 8-9km in open areas using its built-in LoRa module.
How is the device powered for long-term outdoor use?

The node features a 5W solar panel and requires a user-provided button-top 18650 battery to maintain power.
Can I expand the node's capabilities with additional sensors?

Yes, the device includes a Grove interface that supports the plug-and-play Grove ecosystem for various sensors like temperature, humidity, and light.
Does the node come with pre-installed software?

The device comes with Meshtastic firmware pre-installed and is also compatible with Meshcore.
Is it possible to add GPS tracking to this node?

The node is compatible with the XIAO L76K module, which provides support for GPS, GLONASS, and Galileo navigation systems.
What do the different LED indicators signify?

The node includes status lights for charging (red/green), solar exposure (yellow), mesh heartbeat (blue), and a user-defined white LED.
How is the device mounted and installed?

It can be mounted on poles or walls using a three-step 'Align, Insert, and Lock' method, with support for hoop brackets between 70-100mm in diameter.
