SenseCAP RS485 Extension Cable for SenseCAP Sensor Hub

Price:

14.16 €
SenseCAP RS485 Extension Cable for SenseCAP Sensor Hub
  2. Shop
  3. SenseCAP RS485 Extension Cable for SenseCAP Sensor Hub

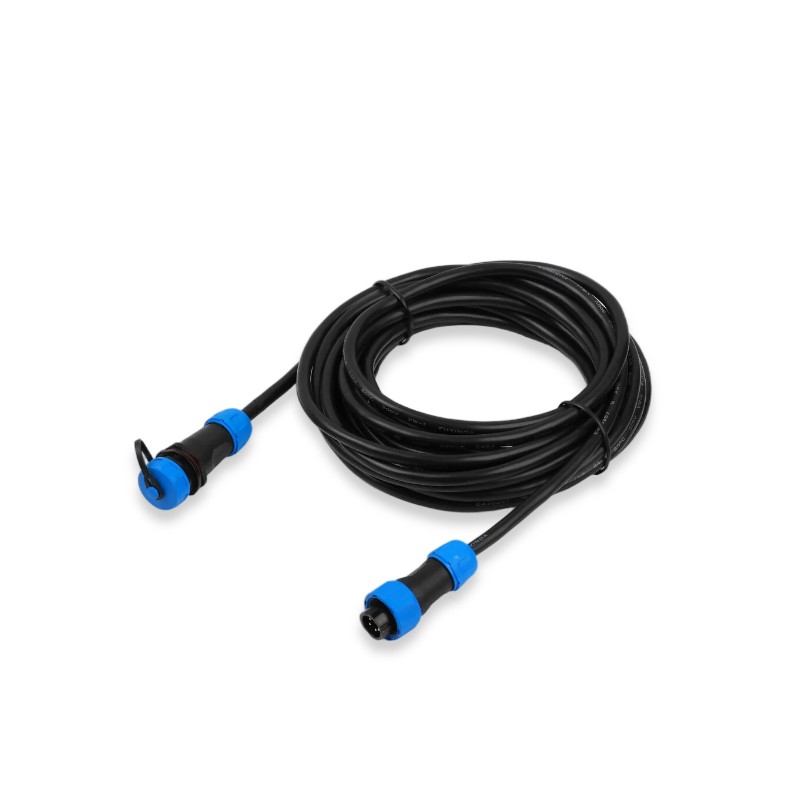

SenseCAP RS485 Extension Cable for SenseCAP Sensor Hub

https://iot-shop.de/web/image/product.template/11902/image_1920?unique=3dde8fd

14.16 € 14.16 EUR 14.16 €

Not Available For Sale

  • Brand
  • enclosure protection class

This combination does not exist.

Contact Us
SKU
 SEE-321990796

incl. 19.0% VAT plus Shipping costs

The SenseCAP RS485 extension cable extends RS485 connections between the Sensor Hub, MODBUS systems, and industrial field devices by 5 m. The 5-pin aviation connector, featuring IP68 protection and resistance to UV rays and rain, makes it suitable for long-term outdoor use in harsh environments. Operating temperature: −40 °C to +85 °C; rated voltage: 300 V; tinned copper conductor; black PVC jacket with an outer diameter of approximately 5 mm.
Certifications
enclosure protection class IP68
Others
Brand Seeed Technology
DataSheet_SenseCap-RS486-cable_EN.pdf
Download
What environmental protection does this extension cable offer for outdoor use?

The cable is IP68-rated and specifically designed to be UV-resistant and rain-resistant, making it suitable for long-term use in harsh outdoor and industrial environments.
What are the primary applications and compatible systems for this product?

This cable is designed for RS485-based sensors and devices, including the SenseCAP Sensor Hub, MODBUS systems, industrial automation projects, and robotics.
What is the physical length and connector type of the cable?

The cable has a total length of 5 meters and utilizes a 5-pin Aviation Connector with a soldered termination method.
What are the electrical specifications and operating temperature range?

The cable follows the UL2464 standard with tinned copper conductors, is rated for 300V, and can operate in temperatures ranging from -40°C to +85°C.
What is the pinout configuration for the wiring?

The 5-core structure is configured as follows: Pin 1 (Blue) for 12V+ Power Supply, Pin 2 (Red) for 5V- Power Ground, Pin 3 (Yellow) for RS485-A, Pin 4 (Green) for RS485-B, and Pin 5 (Black) for GND.
