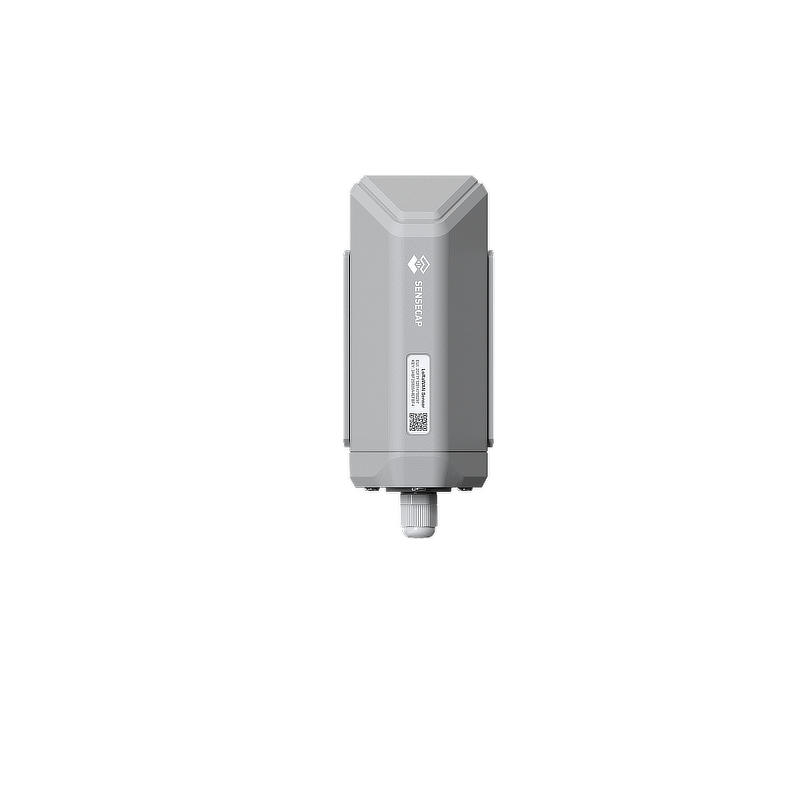

SenseCAP S2100 LoRaWAN Data Logger for Analog/I2C/UART/RS485


68.90 €

SenseCAP S2100 LoRaWAN Data Logger for Analog/I2C/UART/RS485

68.90 € 68.9 EUR 68.90 €

68.90 €

Not Available For Sale

  • Sensor
  • Frequency
  • Connectivity
  • Spannungsversorgung
  • Spannungsversorgungsdetails
  • Spannungsversorgungsdetails
  • Number of power supplies
  • Interfaces
  • Certifications
  • Certifications
  • Certifications
  • Certifications

This combination does not exist.

*Can't order too much quantity!

excl. 19% VAT plus Shipping costs

Seeed launched their new line of robust industrial design, called 'Iot Into the Wild' of IP66 rated outdoor sensors. Easy to configure via bluetooth, with extremely long battery life, the line is well coordinated and consists of hardware products (environmental sensors, data-loggers, gateways and artificial intelligence (AI) sensors) in combination with software services (SenseCAP portal, mobile App, open dashboard, API for device and data management).

The SenseCAP S2100 LoRaWAN Data Logger for extensions with Analog/I2C/UART/RS485 interface receives data from hundreds of different add-on modules and forwards them via LoRaWAN. Thus, the most diverse sensors from the industrial sector can be integrated wirelessly or completely individual solutions for indoor or outdoor use can be developed. The application possibilities are almost unlimited, for example, after the installation of appropriate additional modules, electrical pulses can be recorded or liquid levels, pH value, NH3 (Ammonia), H2S (Hydrogen Sulfide) and much more can be measured. Significantly simplified integration via Plug & Play with pre-configured network servers (Helium, TTN and others), as well as its own free mobile app for immediate reading of measured values. In addition to setting parameters, the app also supports firmware updates and device cluster management.

Sensor Additional Modules
Frequency EU868
Connectivity LoRaWAN
Power supply
Spannungsversorgung Battery
Spannungsversorgungsdetails ER34615, 19000 mAh
Number of power supplies 1
Interfaces Bluetooth
Certifications IP66, CE, FCC, RoHS
SenseCAP S210X LoRaWAN Sensor Product Catalogue (EN)
SenseCAP S210X LoRaWAN Sensor User Guide (EN)
